Welded Wire Mesh
Welded wire mesh is resistance-welded at each wire intersection to form stable square or rectangular openings. Confirm wire diameter, opening size, roll or panel format, coating, edge treatment and drawings so the quotation matches the actual use.
Key RFQ parameters
Product overview
How to Specify Welded Wire Mesh for RFQs
Welded wire mesh can be supplied as rolls, flat sheets, cut panels or framed panels. A useful RFQ starts with wire diameter and opening size, then connects those details with coating, edge finish, fabrication and packing. For a supplied wire list, use the wire-schedule weight calculation to total the wire-only mass and separate it from finished net and packed gross weight.
QY Metal Tech reviews drawings, photos, replacement samples and packing notes before quotation, so the supplied mesh can match guards, partitions, fence panels or repeated project sizes.
Welded Wire Mesh RFQ Parameters
| Wire diameter | Exact wire diameter or gaugeInclude tolerance when the project document or buyer standard requires it. |
|---|---|
| Opening size | Square or rectangular opening sizeConfirm opening direction because it affects visibility, stiffness, weight and airflow. |
| Supply form | Rolls, flat sheets, cut panels or framed panelsChoose the supply form by installation method, handling route and packing plan. |
| Material and coating | Galvanized, PVC coated, powder coated or stainless optionsMatch the coating route to corrosion exposure, color requirement and appearance level. |
| Fabrication details | Cut edges, frames, holes, clips and panel marksSend drawings so fabrication details can be reviewed before quotation. |
| Packing format | Roll diameter, panel stack, pallet marks and wrappingConfirm packing by unloading method, storage space and destination handling. |
Standards reference
Confirm Wire, Opening, Coating and Drawing Details
- Welded wire mesh should be reviewed by wire diameter, opening size, roll width, sheet size, coating and final application.
- Galvanized, PVC coated, powder coated or stainless options should follow corrosion exposure, appearance needs and buyer project documents.
- Cut-to-size panels, framed mesh, mounting holes and edge treatment should be confirmed from drawings before production.
- Final approval should include dimensions, coating appearance, packing marks and delivery grouping when the mesh must match a project layout.
Specification examples
Common Welded Wire Mesh RFQ Expressions
| 50 x 50 x 4 mm roll | Square opening roll expressionConfirm wire diameter, roll width and roll length before quotation. |
|---|---|
| 100 x 50 x 5 mm panel | Rectangular opening panel expressionUseful for guards, partitions or fence panels when stiffness matters. |
| Hot-dip or electro galvanized mesh | Hot-dip or electro galvanized coating routeReview by outdoor exposure, corrosion requirement and surface appearance. |
| Framed welded mesh panel | Framed welded mesh panel by drawingConfirm frame, holes, clips and edge treatment from the drawing. |
Use these expressions as RFQ shorthand, then confirm wire diameter, opening, roll or panel size, coating, edge treatment, quantity and drawings before production.
Applications
Welded Wire Mesh applications and project references
These references show how welded wire mesh details change by use: flat panels for fabrication, fence panels for site installation and close inspection for wire diameter, coating and packing marks.

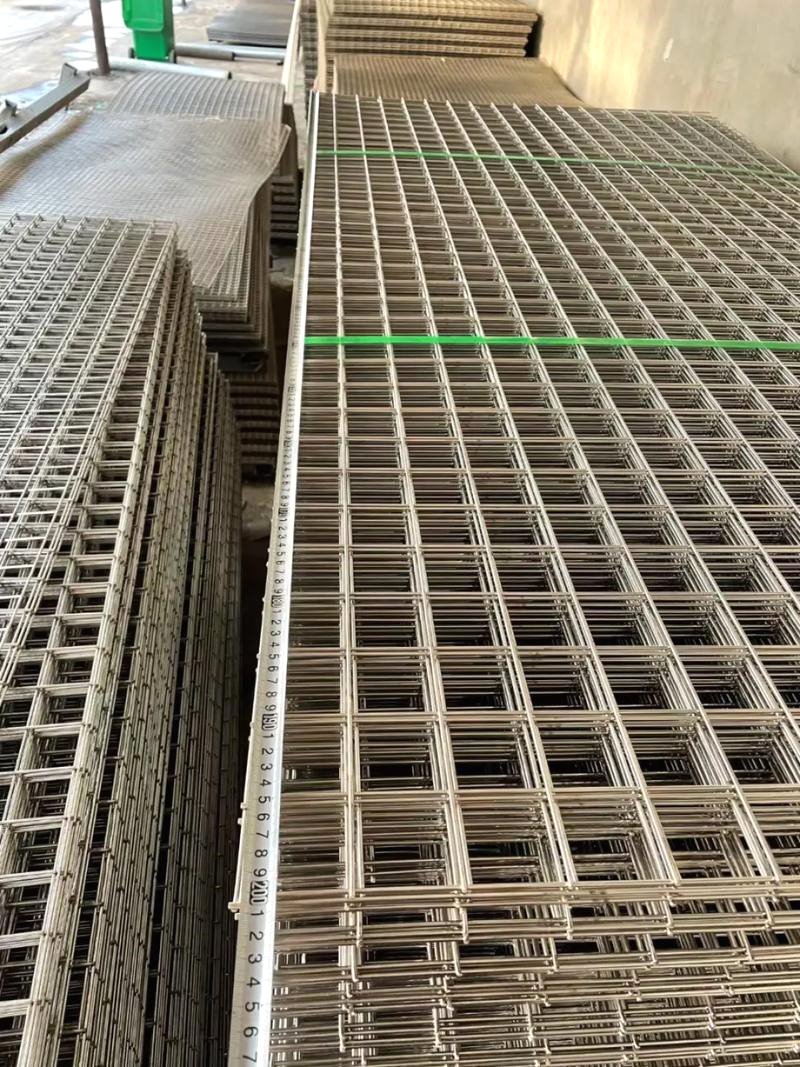

Mesh panels and guards
Flat sheets or cut panels for partitions, machine guards, cages and repeated fabrication sizes.

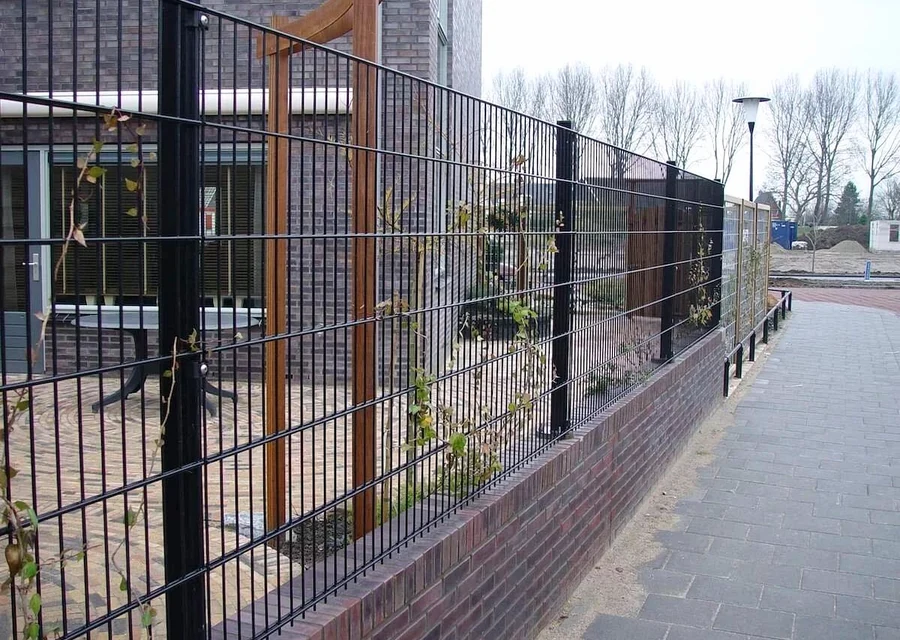

Fence and boundary projects
Welded mesh can be supplied with posts, frames, clips and coated finishes for site installation.

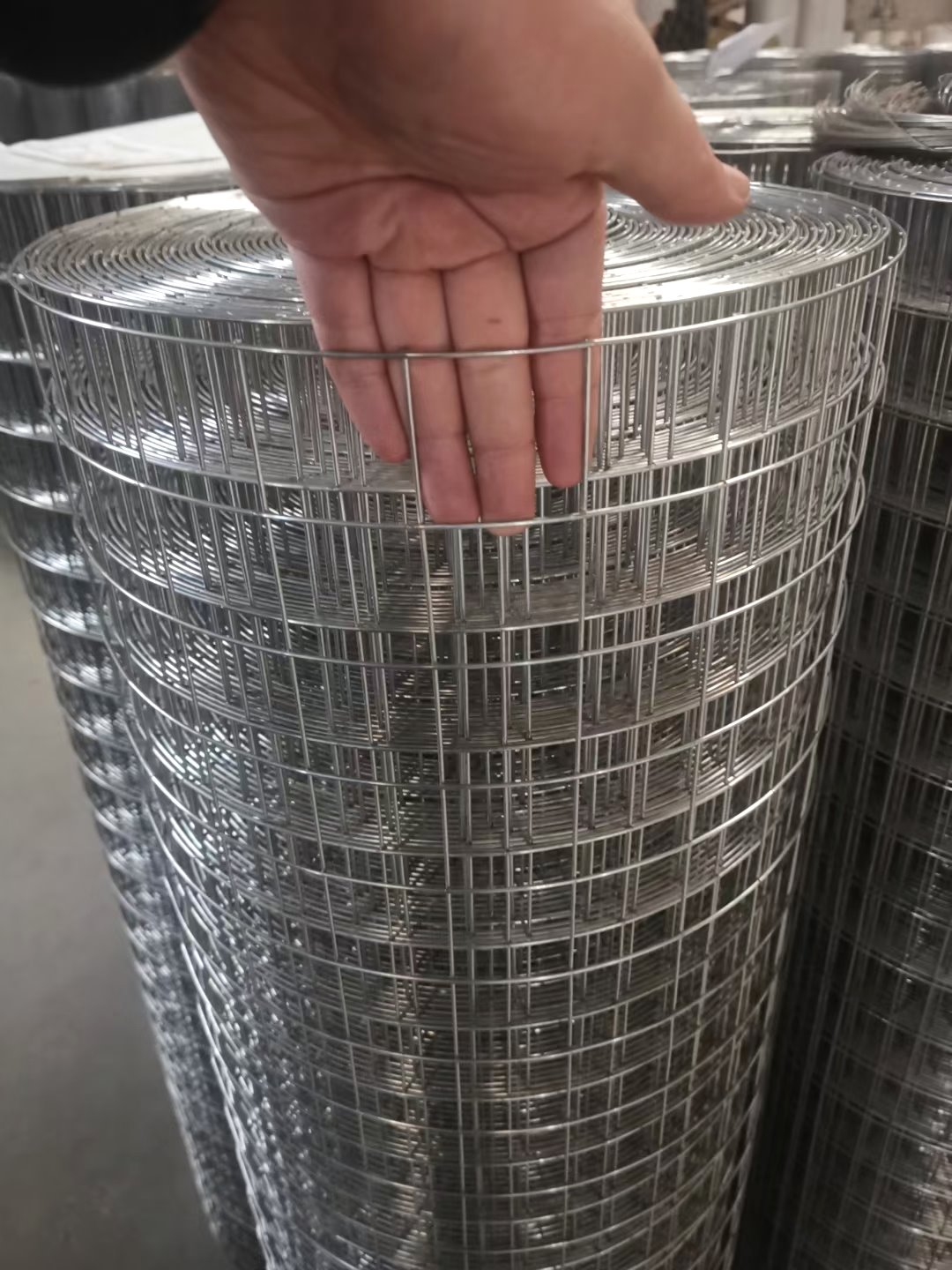

Wire and coating review
Wire diameter, opening, coating appearance and packing labels can be checked before shipment.
RFQ checklist
Send welded wire mesh dimensions for a faster quote
Include wire diameter, opening size, roll width and length or panel size, material, coating, edge treatment, quantity and destination. Drawings, sketches or replacement photos are useful when the mesh must fit an existing project.
Welded Wire Mesh RFQ checklist
- Wire diameter or gauge, opening size and tolerance requirement
- Roll width and length, sheet size or panel dimensions
- Material, coating, edge treatment, frame or hole details
- Quantity, destination, packing marks and drawings if fabricated
FAQ
Welded Wire Mesh buyer questions
Should I give wire diameter or gauge?
Either can be reviewed, but the exact wire diameter in mm, with opening size, coating and tolerance, is clearest for international orders.
Rolls or panels: which should I order?
Rolls suit flexible cutting and some fencing. Panels are better when flatness, repeated sizes, frames or installation fit matter.
What do expressions like 50 × 50 × 4 mm mean?
Opening size followed by wire diameter: a 50 × 50 mm opening with 4 mm wire. 100 × 50 × 5 mm is a rectangular opening with 5 mm wire, often used for stiffer panels.
Which coating is suitable outdoors?
Hot-dip galvanized, electro galvanized, PVC-coated or powder-coated mesh, chosen by corrosion exposure, color and appearance.
Can welded mesh be supplied as framed panels?
Yes. Cut panels and framed panels with holes, clips and edge treatment can be made to your drawings.
Welded or woven mesh: what is the difference?
Welded mesh is joined at every intersection, giving rigid panels with stable openings for guards, partitions and fences. Woven mesh is interlaced and is used mainly for screening and filtration.
Related paths
Continue from this product
Need a practical welded wire mesh quotation?
Send drawings, photos, wire diameter, opening size, coating, quantity and destination. We will review the details before replying with quotation support.
Selection path
Specification, data and project references
1 · Check technical data
2 · See project references
3 · Datasheet and quotation
How woven mesh is specified
Mesh count M = openings per 25.4 mm (1 inch)
w = 25.4 / M − d · open area = (w / p)²
Example: 20 mesh, 0.30 mm wire → w = 1.27 − 0.30 = 0.97 mm, open area ≈ 58%
For a quote, send M (or w) + d + material + roll or panel size.
Mesh calculator
Opening and open area from mesh count
Order terms
- MOQ: 50 pcs (panels, rolls or pieces)
- Samples available; sample and freight costs paid by the buyer
- Payment: 30% deposit, 70% before shipment
- Lead time: usually 30 days ex-works after deposit and drawing approval
- Quotation in 24–48 hours on working days
- Drawings: PDF, DWG, DXF, JPG, PNG, WebP up to 12 MB
Product datasheet
Welded Wire Mesh datasheet
2-page PDF: typical specifications, what we confirm before quotation, RFQ checklist and contact details. (556 KB)
RFQ form
Request Welded Wire Mesh quotation
Upload drawings or photos if available. Include wire diameter, opening size, roll or panel dimensions, material, coating, edge treatment, quantity, destination and application notes for a faster technical response.
Related links
Related product and RFQ resources
- Wire mesh and sheet metal product catalogBrowse the related product family section.
- Wire mesh and sheet metal topic entryWire mesh and sheet metal family page for welded wire mesh, woven wire mesh, expanded metal mesh and perforated metal sheet RFQs.
- Expanded Metal vs Perforated Sheet: What to Confirm Before RFQComparison and RFQ guide for expanded metal and perforated sheet, covering manufacturing method, pattern, open area, material, thickness, sheet size, finish, quantity and packing.
- Wire Mesh Opening and Wire Diameter: What Buyers Should ConfirmWire mesh RFQ guide explaining opening, wire diameter, material, roll or panel format, finish, size, quantity, packing, destination and buyer confirmation details.
- Welded vs Woven Wire Mesh: Which Details Should Buyers Confirm?Wire mesh comparison and RFQ guide covering welded and woven construction, opening, wire diameter, material, roll or panel form, finish, size, quantity and packing.
- Send project RFQ detailsSend drawings, dimensions, finish notes, quantity and destination for review.
Factory verification and order terms
Video factory visits by appointment
Video factory visits can be arranged in advance. Contact our sales team to agree a time, platform and accessible production, inspection or packing areas. Other customers’ information and confidential areas are not shown.
Lead time: usually 30 days ex-works
For regular orders, production usually takes 30 days ex-works, counted from receipt of the deposit and approval of the drawings. Larger or special orders, and stock availability, are confirmed in the written quotation. Production and transport times are stated separately in the quotation or contract.
Written quotation and delivery terms
Trade terms are agreed for each order and logistics arrangement. The written quotation specifies the applicable Incoterms® 2020 rule, named delivery place or port of shipment, and whether freight, insurance and taxes are included. For containers handed to a carrier before vessel loading, FCA is considered rather than automatically using FOB.
Quality concerns and corrective action
Please provide the order number, affected quantity, photos or video, and relevant measurements or inspection records when reporting a quality concern. If responsibility is confirmed to lie with us, a remedy such as repair, additional supply, replacement, refund or price adjustment is agreed under the contract. Costs and the action plan are confirmed in writing; no unconditional return or fixed resolution period is promised.
