Name: Steel Grating Drain Cover
Brand: QY Metal Tech

Steel Grating Drain Cover

Steel grating drain covers are used over trench channels, yard drains, workshop floor drains and service openings where drainage and removable access are both required. Buyers should confirm clear opening, support ledge, load traffic, frame type, bearing direction, surface and finish before quotation.

RFQ quick details

Clear openingConfirm trench clear width, total length, support ledge and how the cover panels are divided.

Load conditionState pedestrian, trolley, forklift, vehicle or maintenance traffic before bearing bar selection.

Support and frameAngle frame, embedded frame, support seat width and anchoring should follow the drawing.

Surface and finishSmooth or serrated surface, hot-dip galvanized finish and drainage exposure should be confirmed.

Removable layoutPanel marks, lifting holes and packing sequence help later installation and maintenance.

For faster quotation, send trench width and length, support ledge, load or wheel traffic, frame details, finish, panel marks and drawings if available.

Send RFQ Chat on WhatsApp

Email salesqymetaltech.com Files PDF, DWG, DXF, sketches and product photos are welcome.

Product overview

How to Specify Steel Grating Drain Covers for RFQs

Drain cover quotation starts from the trench opening, support condition and expected traffic. Clear drawings or marked photos help confirm cover size, bearing direction, frame type and removable panel layout.

QY Metal Tech reviews project drawings, replacement photos, load notes, surface finish and packing sequence so each drain cover panel can match the trench layout and site maintenance requirement.

RFQ Specification Checklist

Clear opening	Measure trench clear width, overall trench length and cover panel layout.
Support ledge	Confirm ledge width, support span, frame seat and whether the cover is frame-supported.
Load condition	State pedestrian, cart, forklift, vehicle or maintenance load and any wheel traffic.
Bearing direction	Bearing bars should span correctly across supports and be marked on the drawing.
Frame and lifting	Angle frame, embedded frame, lifting holes, handles or fixing clips should be listed.
Finish and marks	Surface type, galvanizing, drainage exposure, panel marks and packing sequence should be confirmed.

Standards reference

Drain Cover Standards and Finish References

Drain cover grating can be reviewed by trench drawing, clear span, support ledge, load requirement and standards such as YB/T 4001.1, ANSI/NAAMM MBG 531 or BS 4592 when required.
Vehicle, forklift or trolley areas should confirm wheel contact, support direction and frame details before bearing bar selection.
Hot-dip galvanizing can follow ISO 1461 or ASTM A123/A123M after cutouts, banding, frames and lifting holes are confirmed.
Final inspection should follow approved trench layout, panel marks, removable sequence, finish requirement and packing labels.

Specification examples

Common Drain Cover RFQ Models

Pedestrian trench cover	Common grating cover for walkways, yards and maintenance drainage channels.
Forklift / vehicle cover	Heavier bearing bar and frame reviewed by wheel load, clear span and support ledge.
Angle frame cover set	Angle frame, cover panel, anchoring and lifting holes reviewed together from drawings.
Marked removable set	Panel marks and bundle sequence arranged by trench line, floor area or installation order.

Use these expressions as RFQ shorthand, then confirm clear opening, support ledge, load, frame, material, finish, drawings and panel marks before production.

Applications

Common Applications for Steel Grating Drain Covers

These references help buyers connect trench cover specifications with real site conditions, support ledges, removable access, finish requirements and installation sequence.

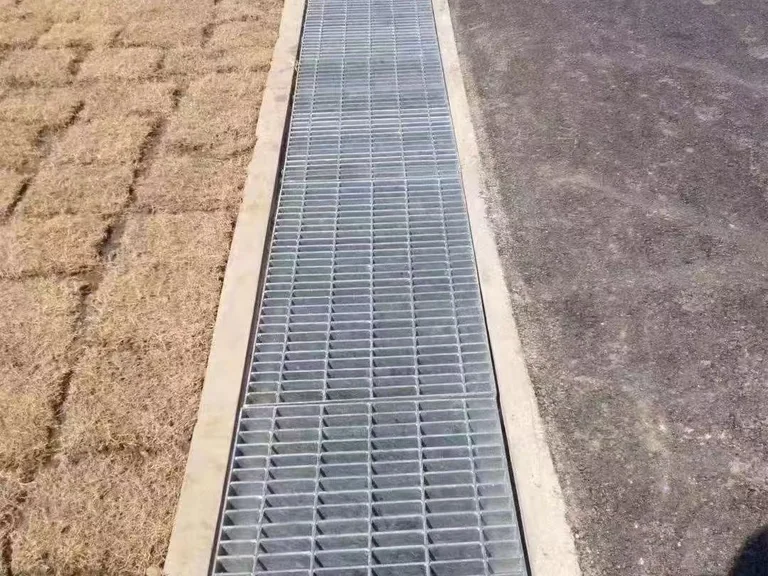

Steel grating trench cover drainage application

Outdoor drainage channels

Hot-dip galvanized grating covers for yard drains, service trenches and outdoor water flow.

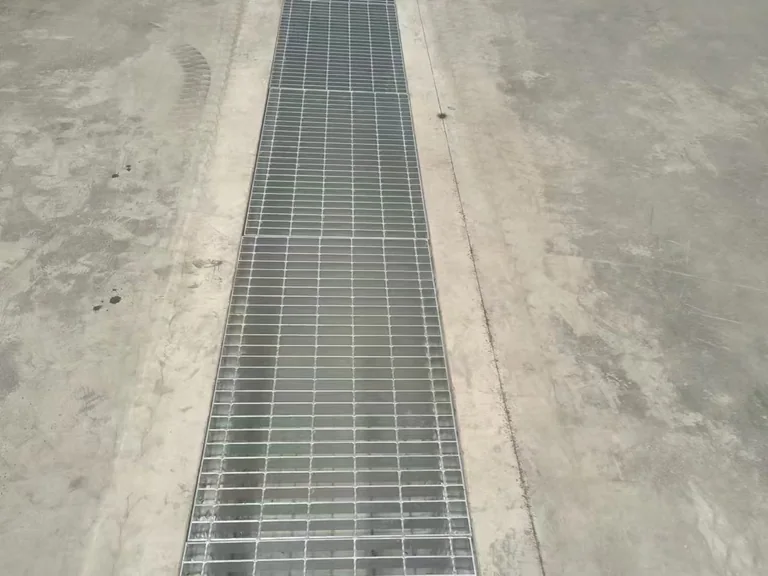

Indoor steel grating drain cover over floor trench

Workshop floor channels

Removable covers for indoor floor trenches, utility channels and maintenance access.

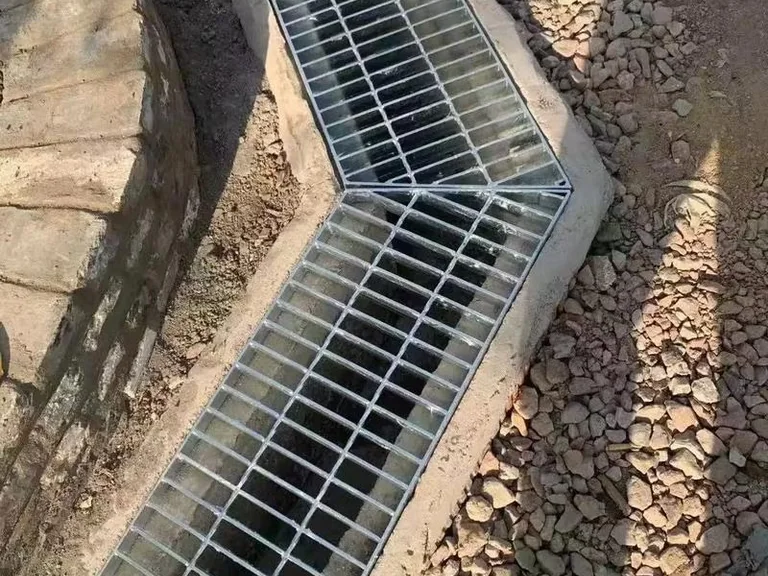

Curved steel grating drain cover in outdoor trench

Curved trench layouts

Cover panels can follow curved channels, frames and project layout drawings.

RFQ checklist

Send Drain Cover Opening, Load and Frame Details

For faster quotation support, include trench width and length, support ledge, cover size, expected traffic, bearing direction, frame type, lifting details, surface, finish, quantity, destination and drawings if available.

Send RFQ View Resources

FAQ

Steel Grating Drain Cover Buyer Questions

What details are needed for steel grating drain cover quotation?

Send trench clear opening, support ledge, cover size, load condition, bearing direction, frame requirement, surface, finish, quantity and drawings or marked photos.

How should load condition be described?

Tell us whether the cover is for pedestrians, carts, forklifts, vehicles or maintenance access. Wheel load and clear span help select the bearing bar.

Can drain covers be supplied with frames?

Yes. Angle frames, embedded frames, anchoring details, lifting holes and removable panel marks can be reviewed together with the grating cover.

Should drain covers use serrated surface?

Serrated surface is useful for wet, oily or pedestrian areas, while smooth grating may be suitable for general drainage or utility channels.

Can drain covers be packed by trench layout?

Yes. Cover marks, bundle labels and packing sequence can follow trench drawings, floor areas or installation order.

Is hot-dip galvanizing common for drain covers?

Yes. Hot-dip galvanizing is commonly requested for outdoor, wet or carbon steel drainage covers after fabrication is complete.

RFQ form

Request Steel Grating Drain Cover quotation

Upload trench drawings or marked photos if available. Include clear opening, support ledge, cover size, load condition, frame requirement, surface, finish, quantity and destination for a faster technical response.

Trench drawings welcomePDF, DWG, DXF, sketches or marked site photos help confirm opening and support ledge.

Load and frame reviewTraffic type, wheel load, support span, frame type and lifting holes affect bar selection.

Packed by trench layoutPanel marks, bundle labels and removable sequence can follow the installation drawing.
