Steel Grating Stair Treads
Stair Treads
Steel grating stair treads are priced and fabricated by tread size, fixing method, nosing, side plate hole layout, surface and finish. Drawings help confirm fit with new or existing stair stringers.
RFQ quick details
Product overview
Stair tread selection for fitted stair flights
Steel grating stair treads are fitted parts, so quotation should confirm more than the grating pattern. Tread width, length, nosing, fixing method, side plate holes and bearing direction all affect fit.
For new stairs, send the stair drawing or tread schedule. For replacement treads, include photos of the old tread, side plate holes and stringer spacing so the new pieces can match the existing stair.
Stair Treads specification path
| Type reference | T1/T2 plain tread or T3/T4 checker-plate nosing tread. |
|---|---|
| Tread size | Typical widths: 600, 700, 800, 900 or 1000 mm; length follows drawing. |
| Nosing and surface | Checker plate nosing, serrated edge, smooth or serrated bearing bars. |
| Side plates | Confirm plate thickness, hole diameter, center distance and stringer layout. |
| Finish | Hot-dip galvanized, painted or stainless for indoor/outdoor exposure. |
| Packing marks | Mark size, type and quantity by stair flight or installation area. |
Standards reference
Standards and finish references
- Stair access requirements may reference ISO 14122, OSHA walking-working surface rules, AS 1657 or local site standards.
- Steel grating construction can be reviewed with YB/T 4001.1, ANSI/NAAMM MBG 531 or BS 4592 when specified.
- Hot-dip galvanizing can follow ISO 1461 or ASTM A123/A123M when a zinc coating reference is required.
- T1/T2/T3/T4 names are useful quotation shorthand; final tread size, side plate holes and fixing method should follow approved stair drawings.
Specification examples
T1-T4 tread type reference
| T1 welded plain tread | Welded fixing, no checker plate nosing; weld position follows drawing. |
|---|---|
| T2 bolted plain tread | Side plates with bolt holes, no checker plate nosing. |
| T3 welded nosing tread | Welded fixing with checker plate nosing for front-edge contact. |
| T4 bolted nosing tread | Side plates, bolt holes and checker plate nosing. |
Use T1-T4 as RFQ shorthand. Final fixing, nosing, hole layout, load and finish should follow drawings.
Component reference
Stair tread parts to confirm before production
Carrier plates, also called side plates, are confirmed by drawing together with bolt holes, nosing type, bar grating direction and final finish.
- Confirm side plate hole size and center distance.
- Choose plain edge or checker plate nosing by project requirement.
- Match bar grating direction and tread width to the stair drawing.
Applications
Stair tread project photos and packing references
Use these project views to check installed tread appearance, checker plate nosing, stair flight grouping and packing marks before quotation.
Installed tread flight view
Installed grating treads show checker plate nosing, open-grid walking surface and stair fit-up.
Project stair replacement view
Existing stair photos help confirm tread width, nosing style, bearing direction and stringer spacing.

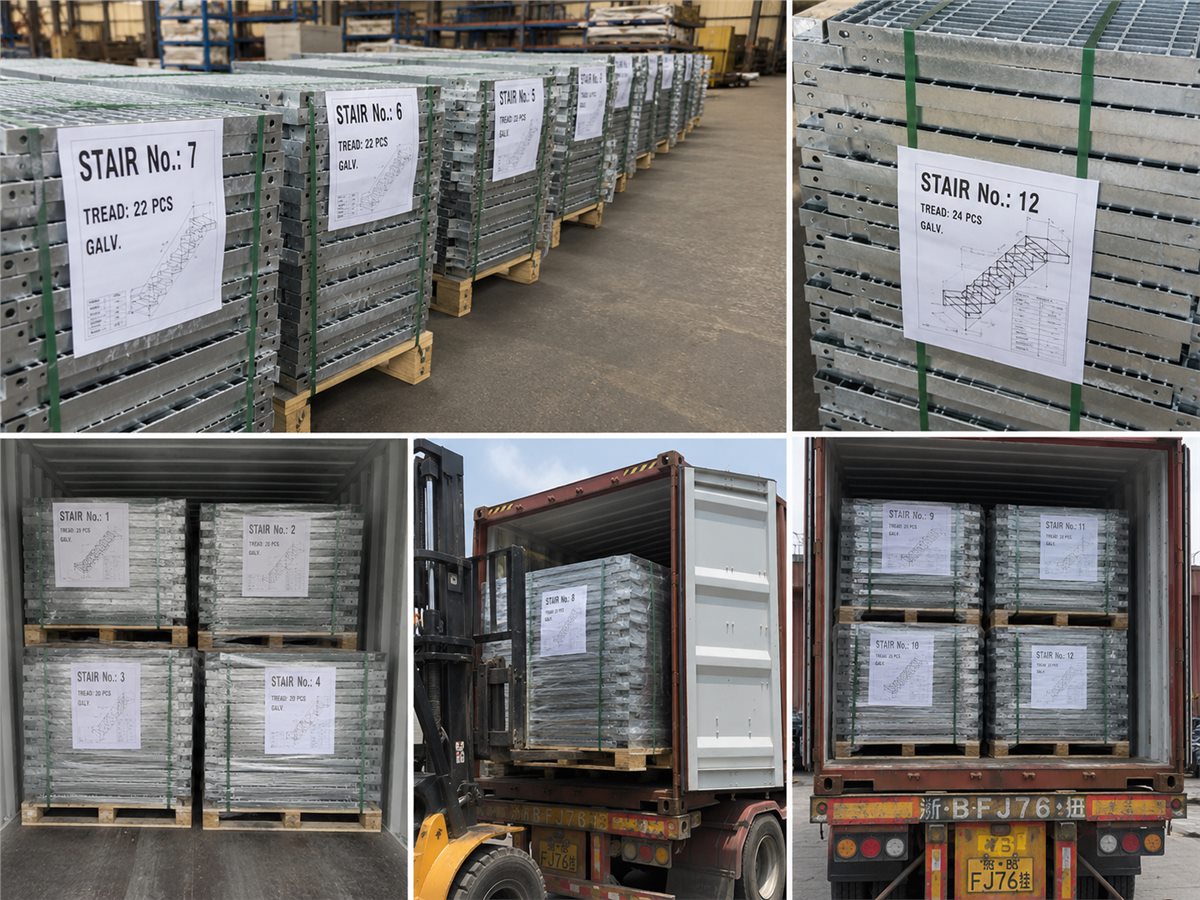

Packed by stair number
Bundle labels, tread quantities and stair flight marks help organize installation after shipment.
RFQ checklist
Send the tread details that affect fit and price
For stair tread quotation, send the tread schedule or stair drawing with width, length, fixing method, nosing, side plate holes, surface, finish, quantity and destination. Replacement photos help when matching old stringers.
Stair tread RFQ checklist
- Tread width, length, bearing direction and grating pattern
- T1/T2/T3/T4 type or welded/bolted fixing method
- Nosing type and side plate hole layout
- Side plate thickness, hole diameter and center distance
- Surface, finish, quantity and stair flight marks
- Stair drawings, replacement photos or packing requirements
FAQ
Stair Treads buyer questions
What sizes do steel grating stair treads come in?
Typical tread widths are 600, 700, 800, 900 and 1000 mm. Tread length and depth follow your stair drawing or tread schedule.
What do the T1, T2, T3 and T4 tread types mean?
T1 is a welded plain tread, T2 a bolted plain tread with side plates, T3 a welded tread with checker plate nosing and T4 a bolted tread with side plates and checker plate nosing.
Do treads come with side plates (carrier plates)?
Yes. Side plates are made to your drawing; confirm plate thickness, bolt hole diameter, hole center distance and stringer layout.
Do I need checker plate nosing?
Checker plate nosing gives a solid, more visible front edge where feet land. Choose plain or checker plate nosing according to your project requirement.
Can you match replacement treads for an existing stair?
Yes. Send photos of the old tread, the side plate holes and the stringer spacing, with measurements, so the new treads fit the existing stair.
Which finish should stair treads have?
Hot-dip galvanized treads are common outdoors, painted treads suit dry indoor stairs and stainless steel is used in corrosive areas. Serrated bars add grip on wet or oily stairs.
Which standards apply to grating stair treads?
Projects often refer to ISO 14122, OSHA walking-working surface rules, AS 1657 or local codes. Final tread size, holes and fixing follow your approved stair drawings.
Can treads be packed by stair flight?
Yes. When you provide a tread schedule, bundles can be marked by size, type and stair flight to make site installation easier.
Related paths
Continue from this product
Need a practical stair treads quotation?
Send drawings, specifications, quantity, destination and packing notes. We will review the details before replying with quotation support.
Stair tread RFQ
Turn stair tread interest into a clear RFQ
Send these details for a stair tread quotation, especially dimensions, nosing, side plates and finish.
- Tread sizeWidth, depth, quantity, bearing bar direction and grating type.
- Stair detailsNosing type, side plate size, bolt holes and drawing marks.
- Finish and packingHot-dip galvanizing, pallet marks, destination and delivery notes.
Selection path
Specification, data and project references
1 · Check technical data
2 · See project references
3 · Datasheet and quotation
Order terms
- MOQ: 50 pcs (panels, rolls or pieces)
- Samples available; sample and freight costs paid by the buyer
- Payment: 30% deposit, 70% before shipment
- Lead time: usually 30 days ex-works after deposit and drawing approval
- Quotation in 24–48 hours on working days
- Drawings: PDF, DWG, DXF, JPG, PNG, WebP up to 12 MB
Product datasheet
Steel Grating Stair Treads datasheet
2-page PDF: typical specifications, what we confirm before quotation, RFQ checklist and contact details. (305 KB)
RFQ form
Request stair tread quotation
Upload stair drawings, tread schedules or replacement photos. Include tread width, length, fixing method, nosing, side plate holes, surface, finish, quantity and destination for a faster review.
