Woven Wire Mesh
Woven wire mesh is selected for screening, filtration, separation and protective panels where weave type, opening, wire diameter and material grade decide performance.
Buyer overview
Woven Wire Mesh for Screening and Industrial Separation
QY Metal Tech reviews mesh count, opening size, wire diameter, weave type, material grade, roll or sheet size and packing marks before quotation, so the supplied mesh matches the screening or protection task.
Opening / Mesh Count
Confirm aperture or mesh count together with wire diameter so screening performance and strength can be reviewed.
Weave and Material
Plain, twill, crimped, stainless, galvanized or carbon steel options should match the service environment.
Roll or Cut Panel
Send roll width, roll length, sheet size, edge detail or frame requirement before comparing price.
Application Fit
Filtration, screening, ventilation or guard use can require different opening accuracy and wire strength.
Packing Marks
Rolls, cut sheets and cartons can be labeled by size, mesh count and project delivery group.
Applications
Where Woven Wire Mesh is commonly used
Industrial screening
Woven openings can be matched to screening, sizing and separation work where stable aperture matters.

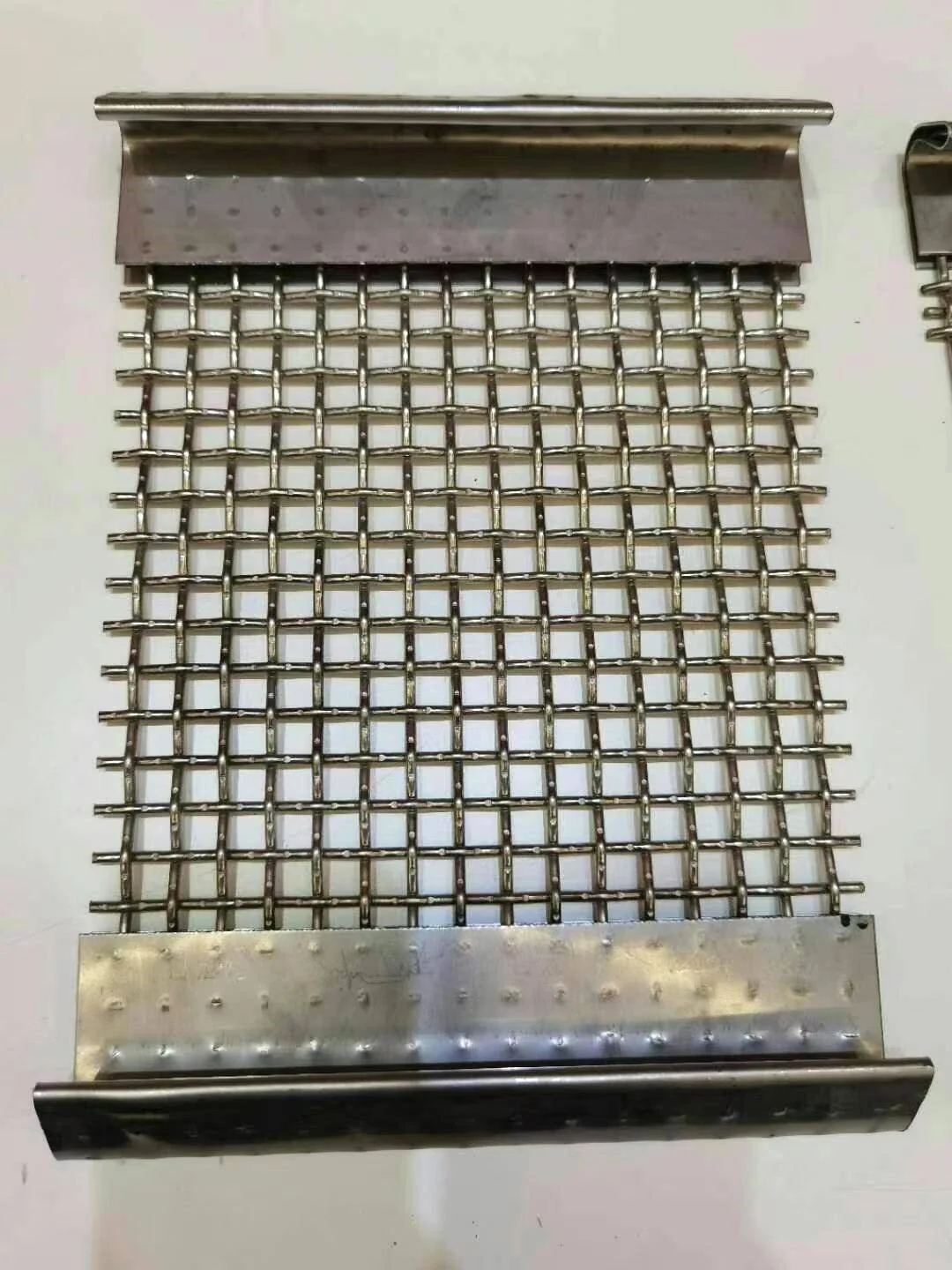

Filtration and separation
Fine mesh, stainless material and clean cut sheets can be reviewed for filtration and process separation.

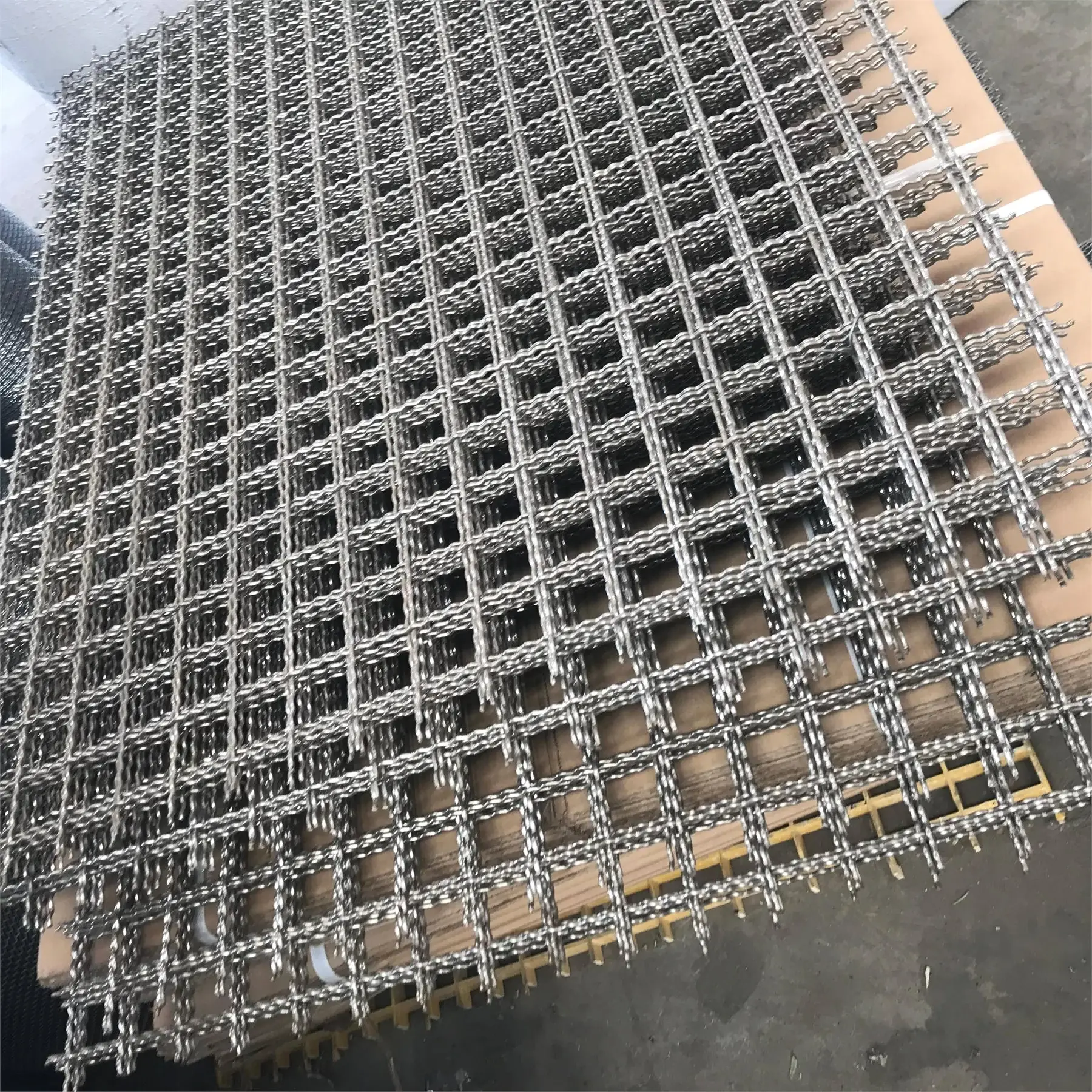

Protective covers and guards
Crimped or heavier woven mesh can be cut for protective covers, guards and equipment panels.
Woven Wire Mesh RFQ Parameters
| Weave type | Plain, twill, crimped or project-specified weaveConfirm the weave route by screening accuracy, strength and application environment. |
|---|---|
| Opening / mesh count | Mesh count or clear openingUse aperture, particle size or filtration requirement to define the opening. |
| Wire diameter | Wire diameter selected by aperture and strengthBalance handling, panel size, durability and open area before quotation. |
| Material | SS304, SS316, galvanized or carbon steel wireChoose material by corrosion exposure, temperature, media and buyer standard. |
| Supply form | Rolls, flat sheets, cut pieces or framed panelsConfirm supply form, edge route and packing unit by installation method. |
RFQ guide
Confirm Weave, Opening, Material and Supply Form
Quote accuracy depends on mesh count or opening, wire diameter, weave type, material grade, roll width, roll length, cut sheet size, edge treatment, quantity and destination.
Standards reference
Standards and Finish References
- Woven wire mesh should be reviewed by mesh count or clear opening, wire diameter, weave type, material grade, roll width and roll length.
- Stainless steel, galvanized or carbon steel wire should be selected by corrosion exposure, screening duty, cleaning condition and buyer specification.
- Cut sheets, framed panels, edge treatment and flatness should follow drawings when the mesh is used for guards, vents or replacement panels.
- Final approval should follow sample photos, mesh tolerances, material documents, packing marks and buyer inspection requirements.
Specification examples
Common Woven Wire Mesh RFQ Expressions
| 20 mesh x 0.40 mm wire | Fine mesh count and wire diameter expressionUse for screening, filtration and separation review before pricing. |
|---|---|
| 10 x 10 mm opening | Medium opening woven mesh expressionUseful for guards, ventilation panels and separation applications. |
| SS304 plain weave roll | Stainless material and plain weave routeConfirm stainless grade and weave when corrosion resistance is important. |
| Crimped cut sheet panel | Crimped cut sheet or framed panelConfirm panel size, edge treatment, frame and packing marks from drawings. |
Use these examples as RFQ shorthand, then confirm final dimensions, load, material, finish and drawings before production.
RFQ checklist
Send Woven Wire Mesh details for a faster quote
Send mesh count or opening size, wire diameter, weave type, material grade, roll width, roll length or sheet size, quantity and destination. Sample photos or drawings help us match an existing mesh.
Woven Wire Mesh RFQ checklist
- Mesh count or opening size, wire diameter and weave type
- Material grade, surface condition and corrosion requirement
- Roll width, roll length, cut sheet size, edge or frame details
- Quantity, destination, carton or pallet labels and drawings/photos
FAQ
Woven Wire Mesh questions before inquiry
What is woven wire mesh used for?
Screening, filtration, separation, ventilation, protective covers and industrial panels where aperture and wire strength matter.
What does mesh count mean?
Mesh count M is the number of openings per 25.4 mm (1 inch). Opening w = 25.4 / M − wire diameter; for example, 20 mesh with 0.30 mm wire gives a 0.97 mm opening and about 58% open area.
Plain weave or crimped mesh: which one?
Plain weave is common for finer screening and filtration. Crimped mesh is used for larger openings, heavier wires and guard panels.
Is stainless steel woven mesh available?
Yes. SS304 and SS316 woven mesh are common for corrosion resistance, washdown areas and filtration.
Which expressions are common in inquiries?
For example 20 mesh × 0.40 mm wire for fine screening, or a 10 × 10 mm opening for guards and ventilation panels.
Can woven mesh be cut to size or framed?
Yes. It can be supplied as rolls, flat sheets, cut pieces or framed panels once dimensions and edge requirements are confirmed.
Related paths
Continue from this product
Need a practical Woven Wire Mesh quotation?
Send drawings, product dimensions, finish requirements, quantity and destination. We will review the details before quotation.
Selection path
Specification, data and project references
1 · Check technical data
2 · See project references
3 · Datasheet and quotation
How woven mesh is specified
Mesh count M = openings per 25.4 mm (1 inch)
w = 25.4 / M − d · open area = (w / p)²
Example: 20 mesh, 0.30 mm wire → w = 1.27 − 0.30 = 0.97 mm, open area ≈ 58%
For a quote, send M (or w) + d + material + roll or panel size.
Mesh calculator
Opening and open area from mesh count
Order terms
- MOQ: 50 pcs (panels, rolls or pieces)
- Samples available; sample and freight costs paid by the buyer
- Payment: 30% deposit, 70% before shipment
- Lead time: usually 30 days ex-works after deposit and drawing approval
- Quotation in 24–48 hours on working days
- Drawings: PDF, DWG, DXF, JPG, PNG, WebP up to 12 MB
Product datasheet
Woven Wire Mesh datasheet
2-page PDF: typical specifications, what we confirm before quotation, RFQ checklist and contact details. (595 KB)
RFQ form
Request Woven Wire Mesh quotation
Upload drawings or sample photos if available. Include mesh count or opening, wire diameter, weave type, material, roll or sheet size, edge detail, quantity and destination.
