Ball joint railings are modular safety handrail systems for platform edges, stair flights, maintenance walkways and equipment access areas.
Buyer overview

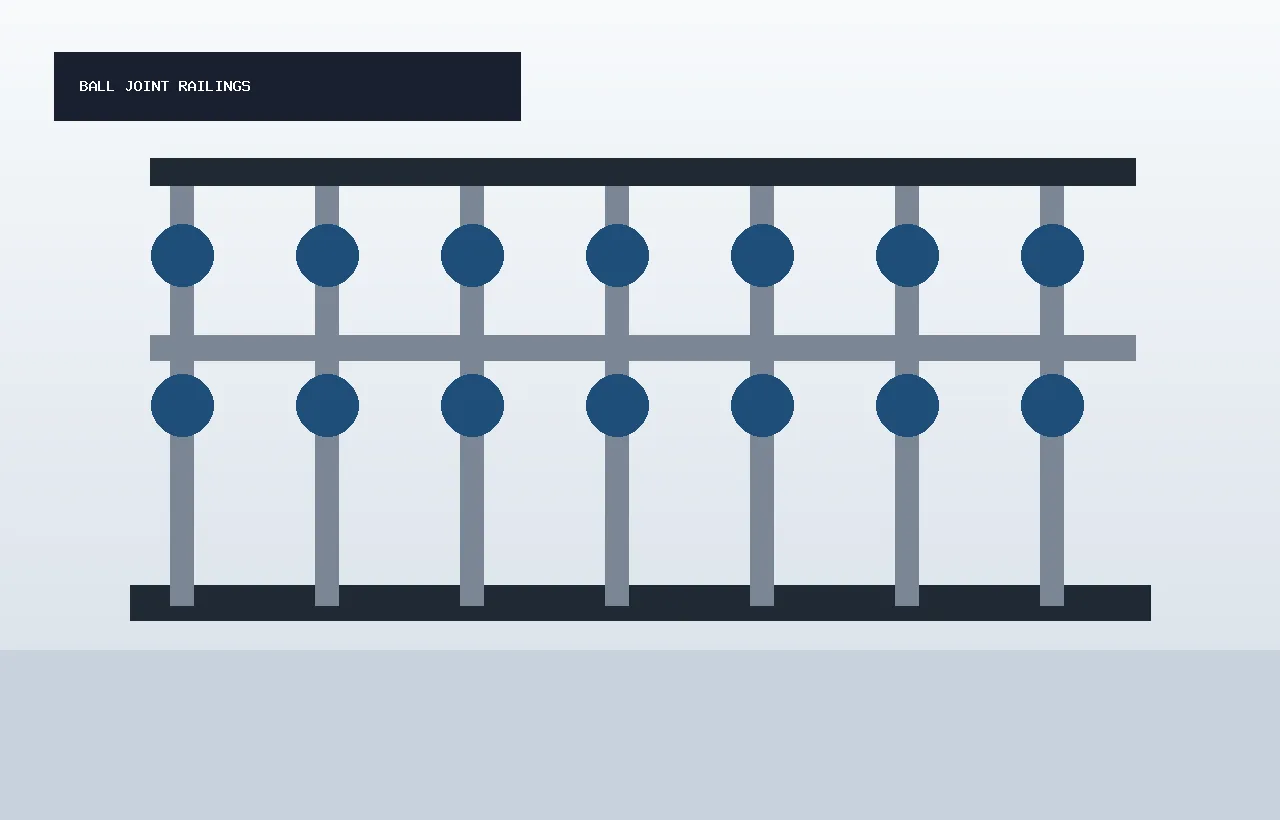

Ball Joint Railings for Industrial Platforms, Stairs and Walkways
QY Metal Tech reviews railing drawings, site photos, post layout, fixing method, finish, quantity and packing marks before quotation so the supplied sections match the installation route.
Layout drawings
Platform edge, stair flight, landing and gate locations should be marked before quotation.
Post and tube size
Rail height, tube diameter, post spacing and ball joint layout decide the system route.
Mounting details
Base plate, side mount, embedded fixing or welded fixing should match site structure.
Accessories
Kick plates, corner returns, gates and removable sections need to be listed by area.
Packing marks
Bundle labels and installation sequence help site teams match railing sections quickly.
Applications
Where Ball Joint Railings is commonly used

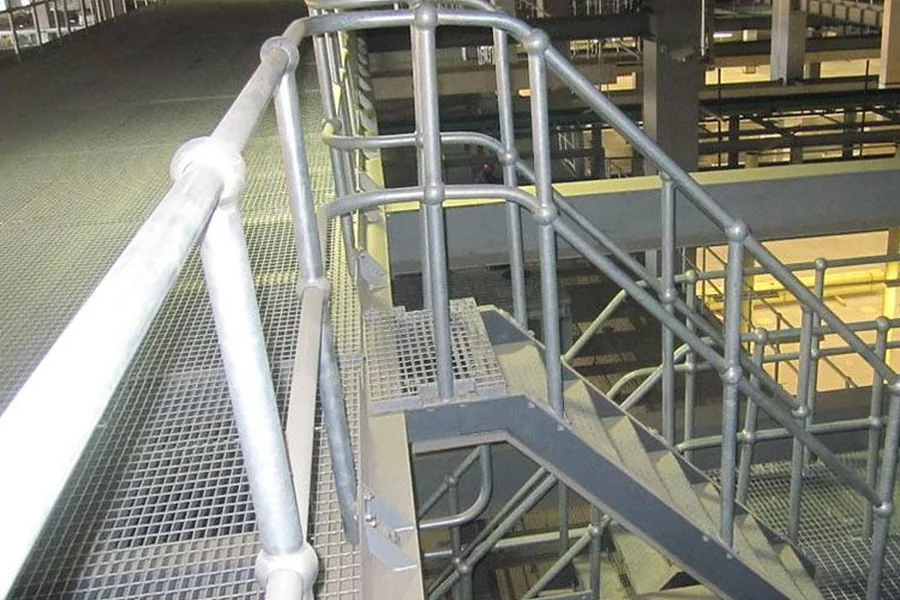

Platform edge protection
Ball joint handrails define safe platform edges around industrial access floors and equipment areas.

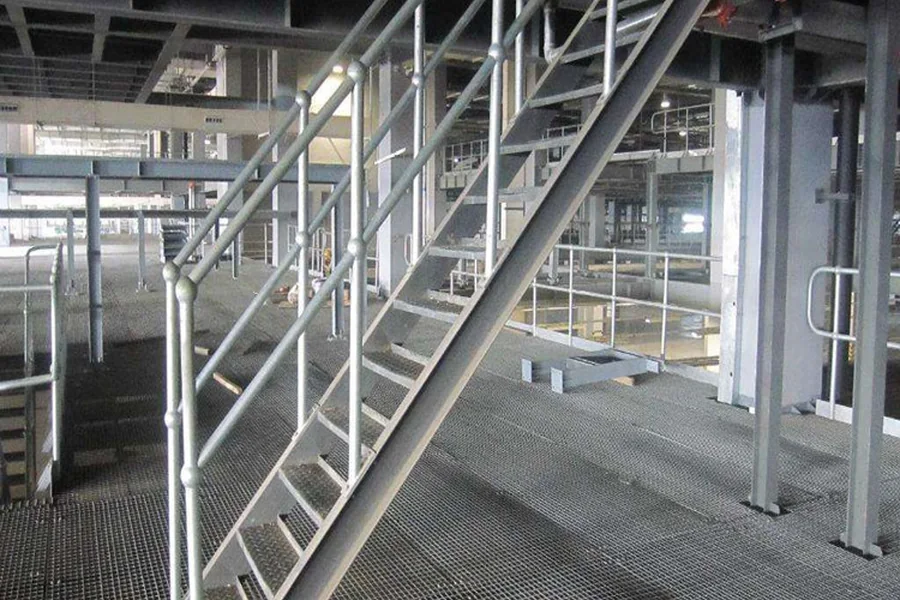

Stair and landing handrails
Stair runs and landings should be reviewed with slope, post positions, bends and return details.

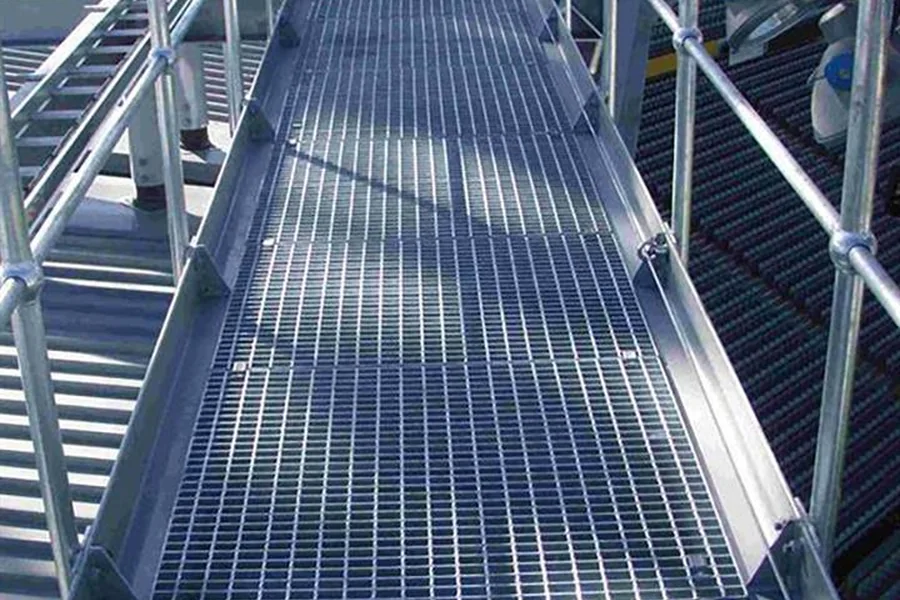

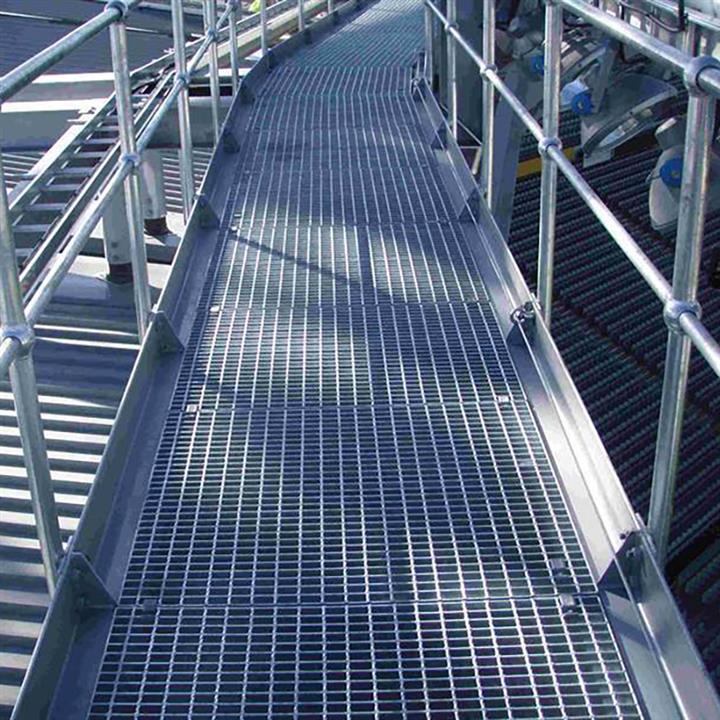

Walkway safety routes
Walkway handrail packages can be matched with grating panels, toe plates and installation marks.
Ball joint railings: standard specifications
| Item | Common options | Notes |
|---|---|---|
| Rail height | 1000 or 1100 mm | 1100 mm is a common industrial reference (e.g. EN ISO 14122-3); confirm the rule at your site. |
| Tube size | OD 33.7, 42.4 or 48.3 mm; wall 2.6–3.2 mm | Posts and rails can use different sizes. |
| Rails | 2 rails (top + knee) or 3 rails | |
| Post spacing | Typically up to 1500 mm | Follows the platform layout and support steel. |
| Toe plate | 100 or 150 mm high | Supplied loose or welded to posts. |
| Material | Carbon steel; stainless steel 304 on request | |
| Finish | Hot-dip galvanized to ISO 1461 or painted | Galvanized after fabrication. |
| Mounting | Base plate, side mount, embedded or welded | Chosen per location along the route. |
| Design load | Checked per project | Send the required horizontal load and standard. |
Ball Joint Railings specification path
| Rail height | Guardrail height and mid-rail levelConfirm the local safety requirement before quotation. |
|---|---|
| Post spacing | Post spacing, tube size and ball joint layoutMatch the platform or stair drawings before production. |
| Mounting method | Base plate, side mount, embedded or welded fixingMark the fixing route by location on the layout. |
| Accessories | Kick plates, gates, bends and removable sectionsList corner posts and special sections by area. |
| Finish and marks | Hot-dip galvanized, painted or powder coated finishConfirm installation marks and packing labels. |
RFQ guide
Send the details that decide the quote
Buyers get a faster technical response when the inquiry includes railing layout drawings, rail height, tube size, post spacing, mounting method, accessories, finish, quantity and destination.
Standards reference
Standards and finish references can be reviewed by project requirement
- Ball joint railing projects should be reviewed by rail height, tube size, post spacing, mounting method, stair slope, gates and local safety requirements.
- Hot-dip galvanizing can be specified according to ISO 1461 or ASTM A123/A123M when a zinc coating reference is required.
- Painted or powder coated finish, kick plates, base plates, bolts and removable sections should follow the approved layout drawings.
- Final approval should follow project drawings, site measurements, installation sequence, bundle marks and buyer inspection documents.
Specification examples
Common Ball Joint Railings model expressions
| 1100 mm rail height | Railing height referenceUse as shorthand only, then confirm the local safety rule. |
|---|---|
| Base plate mounted post | Base plate mounted postReview plate size, bolt holes and support steel. |
| Stair railing run | Stair railing runConfirm stair slope, landing return, post positions and bends. |
| Toe board and gate set | Toe board and gate setList kick plate, gate, corner return and removable sections by area. |
Use these examples as RFQ shorthand, then confirm final dimensions, load, material, finish and drawings before production.
RFQ checklist
Send Ball Joint Railings details for a faster quote
Include layout drawings, rail height, tube size, post spacing, mounting method, accessories, finish, quantity and destination. Photos of platforms, stairs or replacement areas are useful when drawings are incomplete.
Ball Joint Railings RFQ checklist
- Rail height, tube size, post spacing and ball joint layout
- Base plate, side mount, kick plate, corners and gates
- Stair angle, landing returns, removable sections and finish
- Quantity, destination, bundle labels and packing marks
FAQ
Ball Joint Railings questions before inquiry
What are ball joint railings used for?
Industrial platform edges, stair flights, landings, walkways and equipment access routes.
What rail height is used?
1100 mm is a common reference height; confirm the rule that applies at your site before ordering.
How can the posts be mounted?
Base plate, side mount, embedded or welded fixing, chosen to suit the supporting structure at each location.
Can railings follow stairs and corners?
Yes. Stair slope, landing returns, bends, corner posts and removable sections can be made from your drawings or marked photos.
Are kick plates and gates available?
Yes. Kick plates (toe boards), gates, corner returns and removable sections can be listed by area and supplied with the railings.
Can railings be supplied with grating platforms?
Yes. Railings can be quoted together with steel grating platforms, stair treads and toe plates as one access package.
Related paths
Continue from this product
Need a practical Ball Joint Railings quotation?
Send drawings, product dimensions, finish requirements, quantity and destination. We will review the details before quotation.
Handrail layout checklist
Handrail drawing, accessories and packing details
Use the following checklist with the railing specifications above. It reproduces the layout and order information from the one-page QY Metal Tech Handrail Layout Checklist; the original PDF download is retained.
| Review item | Information to provide |
|---|---|
| Layout | Platform, stair or walkway layout drawings with dimensions. |
| Height, posts and fixing | Handrail height, stanchion type, post spacing and fixing method. |
| Corners and access | Corners, return bends, stair transitions, openings and access gates. |
| Accessories | Kick plate, toe board, end cap and removable rail requirements. |
| Finish | Galvanized, painted or powder coated finish; color if needed. |
| Quantity schedule | Separate quantities by floor, area, section number or installation zone. |
| Packing and delivery | Bundle marks, packing notes, destination and project deadline. |
Send the drawings and photos with your RFQ for quotation review. The separate highway guardrail checklist linked elsewhere is a road-barrier reference, not the specification for these industrial handrails.
Ball joint railing RFQ references
Use these references with the applicable project assumptions. They support pre-quotation screening and are not a certificate or engineering approval. Final quotation follows the confirmed drawing, dimensions, load or service conditions.
Technical checks before quotation
- Confirm platform or stair layout, handrail height and post spacing.
- Provide toe-board, base-plate, fixing and connection requirements where applicable.
- Confirm finish, site conditions and any local safety or access requirements.
Selection path
Specification, data and project references
1 · Check technical data
2 · See project references
3 · Datasheet and quotation
Order terms
- MOQ: guardrails are quoted per metre
- Samples available; sample and freight costs paid by the buyer
- Payment: 30% deposit, 70% before shipment
- Lead time: usually 30 days ex-works after deposit and drawing approval
- Quotation in 24–48 hours on working days
- Drawings: PDF, DWG, DXF, JPG, PNG, WebP up to 12 MB
Product datasheet
Ball Joint Railings datasheet
2-page PDF: typical specifications, what we confirm before quotation, RFQ checklist and contact details. (323 KB)
RFQ form
Request Ball Joint Railings quotation
Upload layout drawings or marked site photos if available. Include rail height, tube size, post spacing, base plate or side mount, kick plate, gates, finish, quantity and destination.
