Chain Link Fence

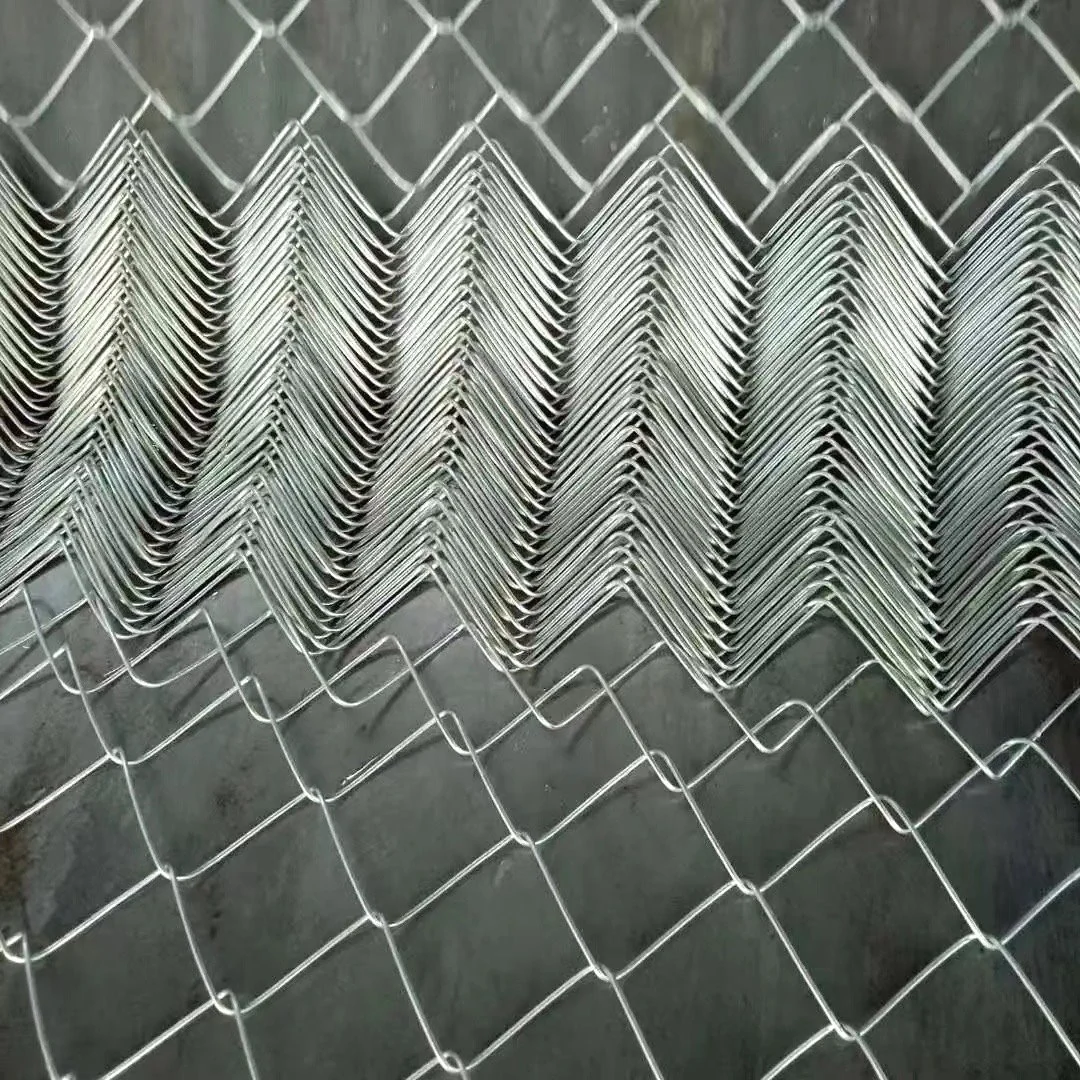

Chain link fence is a diamond mesh fencing system for perimeter protection. QY Metal Tech can quote galvanized or PVC coated rolls together with posts, rails, tension wire, gates and fittings for site installation.
Buyer overview
Chain Link Fence Rolls and Complete Fence Systems
QY Metal Tech checks fence fabric, post system, gates and accessories together so the quotation covers the installed fence system, not just mesh rolls.
Fence fabric
Confirm height, roll length, wire diameter, mesh opening and selvage.
Coating choice
Galvanized or PVC coated finish should match outdoor exposure and project color.
Posts and gates
Line posts, terminal posts, top rail, tension wire, fittings and gates should be listed together.
Site layout
Total length, corners, gate positions and installation method help calculate the system.
Packing marks
Rolls, posts and accessory cartons can be packed by project area or installation sequence.
Applications
Where Chain Link Fence is commonly used
Yard and farm boundaries
Diamond mesh rolls create visible boundary lines for farms, yards, parks and temporary project areas.

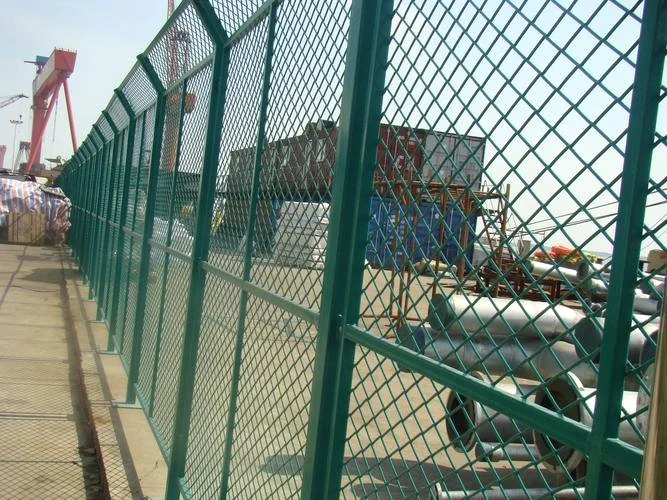

Sports field perimeter
Fence height, roll length and opening size can be matched to courts, fields and public facilities.

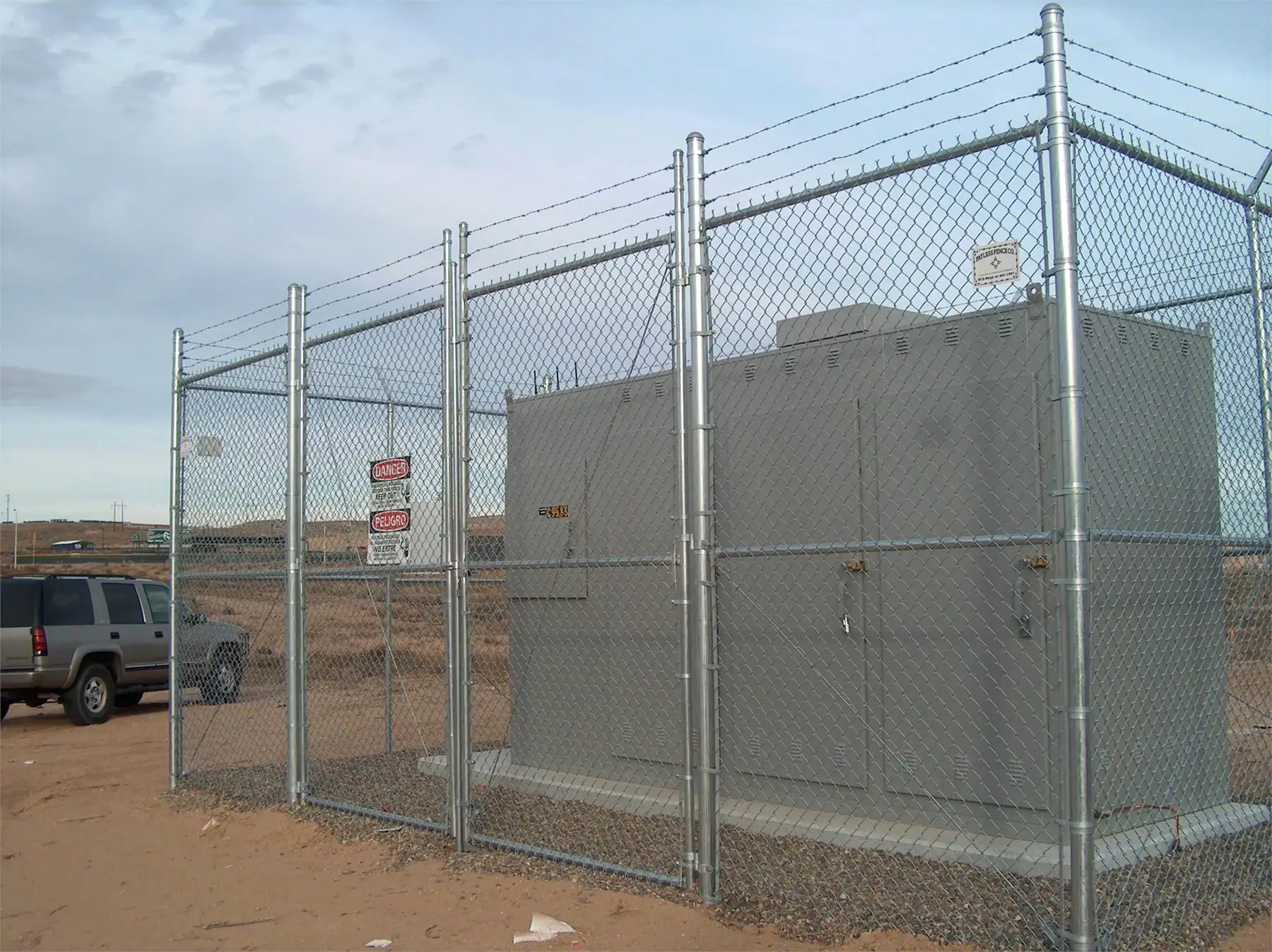

Facility and utility enclosures
Posts, top rail, tension wire and gates can be supplied together for industrial or utility perimeter projects.
Chain link fence: standard specifications
| Item | Common options | Notes |
|---|---|---|
| Mesh opening | 40, 50, 60 or 75 mm diamond | State clear or centre-to-centre opening. |
| Wire diameter | 2.0–4.0 mm galvanized | State whether the diameter is before or after coating. |
| PVC coated wire | e.g. 2.0 mm core, 3.0 mm overall | Green or black are common. |
| Fence height | 0.9–4.0 m | |
| Roll length | 15, 20 or 25 m | Packed and labelled by fence section. |
| Selvage | Knuckled or twisted edges | Twisted top edge for security fencing. |
| Coating | Electro-galvanized, hot-dip galvanized or PVC coated wire | Chosen by outdoor exposure. |
| Posts and rails | Round posts Ø48, 60, 76 or 89 mm; top rail Ø42 mm; tension wire, ties and braces | Gates: single or double swing. |
Chain Link Fence RFQ Parameters
| Fence fabric | Galvanized or PVC coated diamond mesh rollsConfirm fabric type, coating color and roll packing before quotation. |
|---|---|
| Wire and opening | Wire diameter and mesh openingSelect by security level, visibility requirement and project budget. |
| Height and length | Fence height, roll length and total project lengthUse layout length, corner count and gate positions to calculate the system. |
| Post system | Line posts, terminal posts, top rail or tension wireConfirm the post route and support accessories together with the fence fabric. |
| Accessories | Ties, clips, caps, fittings, gates and packing marksList accessories and label groups by installation area or fence section. |
RFQ guide
Confirm Fence Fabric, Posts and Accessories
Quote accuracy depends on fence height, total length, mesh opening, wire diameter, coating, post layout, gates, accessories and destination.
Standards reference
Standards and Finish References
- Fence and guardrail systems should be reviewed by project drawings, installation method and local safety requirements.
- Hot-dip galvanizing can be specified according to ISO 1461 or ASTM A123/A123M when a coating reference is required.
- Powder coating color, PVC coating, posts, gates, clips and fasteners should follow the approved layout.
- Final specification should follow project drawings, local codes and buyer approval documents.
Specification examples
Common Chain Link Fence RFQ Expressions
| 50 x 50 mm diamond mesh | Common diamond mesh openingUse as RFQ shorthand, then confirm final opening by project requirement. |
|---|---|
| 2.5 mm galvanized wire | Galvanized wire diameter exampleConfirm wire size, coating route and corrosion exposure before pricing. |
| Green PVC coated roll | PVC coated fence fabric optionUse when project color, outdoor exposure or appearance is important. |
| Complete fence system | Complete chain link fence systemQuote mesh rolls, posts, tension wire, fittings and gates as one package. |
Use these examples as RFQ shorthand, then confirm final dimensions, load, material, finish and drawings before production.
RFQ checklist
Send Chain Link Fence details for a faster quote
Send fence height, total length or roll quantity, mesh opening, wire gauge, coating, post spacing, gates and accessories. Photos or layout sketches help us check corners and gate positions.
Chain Link Fence RFQ checklist
- Fence height, roll length, total length, mesh opening and wire diameter
- Galvanized finish or PVC coating color, plus selvage type if required
- Post type, spacing, top rail or tension wire, gates and fittings
- Quantity, destination, packing marks, drawings or site photos
FAQ
Chain Link Fence questions before inquiry
What is chain link fence used for?
Yards, farms, sports fields, factories, utility areas and long perimeter boundaries where visibility and flexible installation matter.
What mesh and wire sizes are common?
50 × 50 mm diamond mesh with 2.5 mm galvanized wire is a common example; height, opening and wire size follow your security level and budget.
Galvanized or PVC coated: which one?
Galvanized fabric is the standard outdoor choice. PVC coating adds color and extra protection where appearance matters.
Can posts, rails and gates be supplied too?
Yes. Mesh rolls, line and terminal posts, top rail, tension wire, ties, caps, fittings and gates can be quoted as one system.
How should I state the mesh opening and wire diameter?
Say whether the opening is clear (inside to inside) or center to center, and whether the wire diameter is before or after coating.
How is chain link fence packed?
Rolls, posts and accessory cartons can be packed and marked by fence section or installation area.
Related paths
Continue from this product
Need a practical Chain Link Fence quotation?
Send drawings, product dimensions, finish requirements, quantity and destination. We will review the details before quotation.
Fence and wire measurement checklists
Chain link fence layout and wire measurement details
The one-page Fence Panel RFQ Checklist and Opening & Wire Diameter Checklist cover several wire fence families. Their applicable layout and measurement fields are reproduced here. Select the chain link fence details for this product; the example welded panel below is not a chain link specification. Both original PDFs remain downloadable.
| Review item | Information to provide |
|---|---|
| Site layout | Total length, corners, slope changes and gate positions. |
| Fence family | Chain link fence for this product. The shared checklist also lists welded mesh fence and double wire fence. |
| Mesh and size | Height, width, wire diameter, mesh opening and frame detail where applicable. Specify roll or panel form. |
| Posts | Post section and embedded or base plate installation. The shared checklist lists round, square and peach posts; confirm the post appropriate to the selected fence system. |
| Gates and accessories | Gate size, clips, bolts, caps and terminal posts. |
| Finish | Hot-dip galvanized, powder coated or PVC coated, and color code as applicable to each component. |
| Packing | Panel or roll marks, post marks, accessory cartons and destination. Send drawings or photos for quotation review. |
| Measurement | Definition to confirm |
|---|---|
| Opening basis | Clear opening inside-to-inside, center-to-center pitch or mesh count; state which basis is being used. |
| Opening direction | Mark length x width, diamond direction or roll direction. |
| Wire diameter | Diameter before coating or diameter after coating; confirm gauge or mm and the material: low carbon steel, galvanized wire, stainless steel or PVC coated wire. |
| Format and tolerance | Roll width and length, panel size, sheet size or cut-to-size tolerance, as applicable. |
| Edges | Edge wire, frame, folded edge, cut edge or border requirement, as applicable to the selected product. |
| RFQ attachments | Drawing or photo, quantity, application, destination and packing marks. |
Shared-checklist wording example – welded mesh only: welded mesh panel, 50 x 50 mm clear opening, 4.0 mm wire after galvanizing, panel 1000 x 2000 mm, hot-dip galvanized, 500 pcs, export pallet packing. This illustrates how to write an RFQ; it is not a chain link size, stock offer or project-approved specification.
Chain link fence RFQ references
Use these references with the applicable project assumptions. They support pre-quotation screening and are not a certificate or engineering approval. Final quotation follows the confirmed drawing, dimensions, load or service conditions.
Technical checks before quotation
- Confirm mesh opening, wire diameter, panel height and post spacing.
- Provide gate, corner, terminal-post and security-top requirements where applicable.
- Confirm finish, wind/site conditions, foundation details and delivery scope.
Selection path
Specification, data and project references
1 · Check technical data
2 · See project references
3 · Datasheet and quotation
Order terms
- MOQ: 50 pcs (panels, rolls or pieces)
- Samples available; sample and freight costs paid by the buyer
- Payment: 30% deposit, 70% before shipment
- Lead time: usually 30 days ex-works after deposit and drawing approval
- Quotation in 24–48 hours on working days
- Drawings: PDF, DWG, DXF, JPG, PNG, WebP up to 12 MB
Product datasheet
Chain Link Fence datasheet
2-page PDF: typical specifications, what we confirm before quotation, RFQ checklist and contact details. (401 KB)
RFQ form
Request Chain Link Fence quotation
Upload layout drawings or site photos if available. Include fence height, total length, mesh opening, wire diameter, coating, posts, gates, quantity and destination.
