Industrial pedestrian barrier project references

Sources: QY-IGR-DS-01 and QY-IGR-INS-01, both Rev. 1.0 / 24 Jul 2026. These RFQ and installation references are available in the existing downloads.

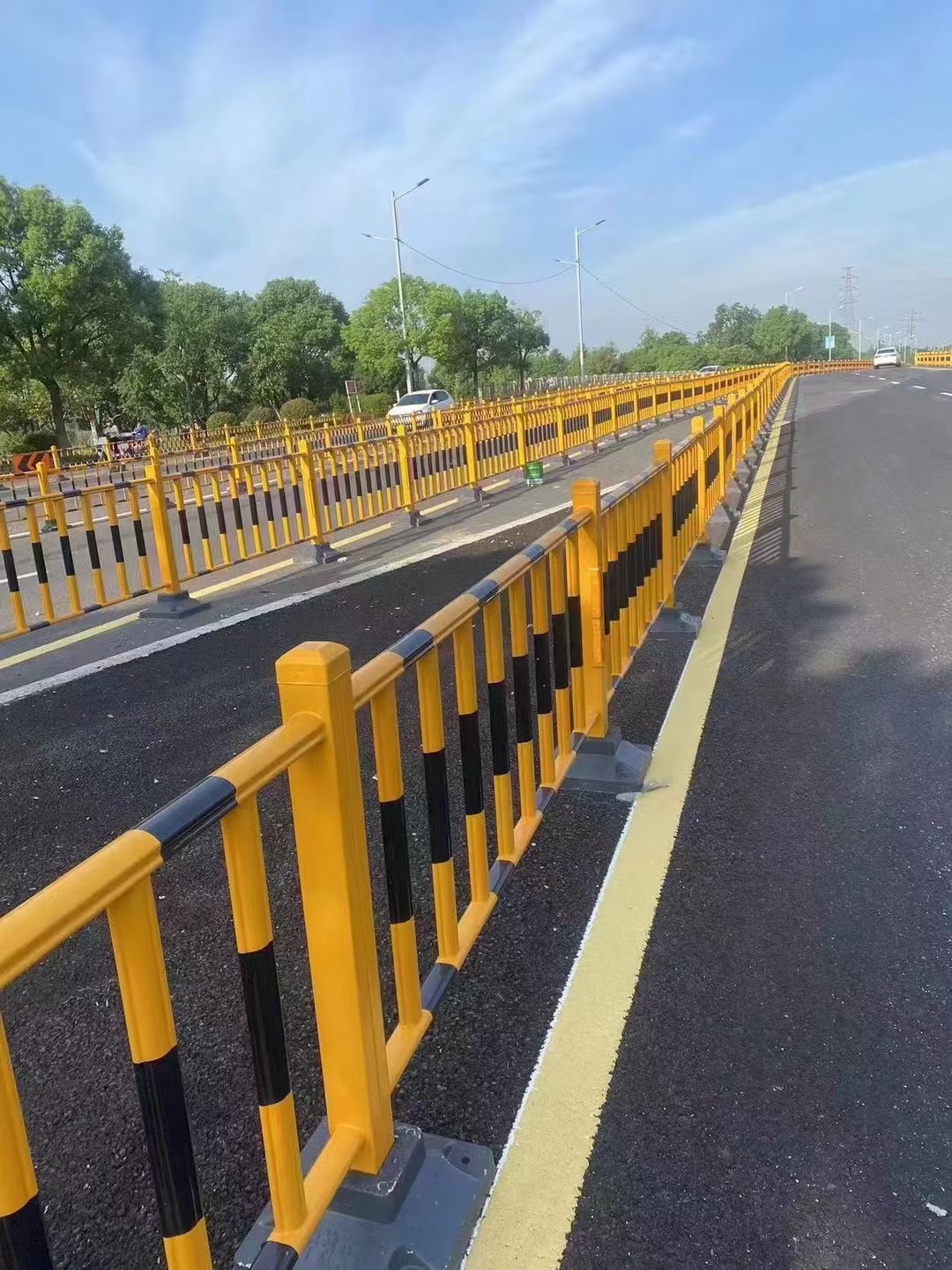

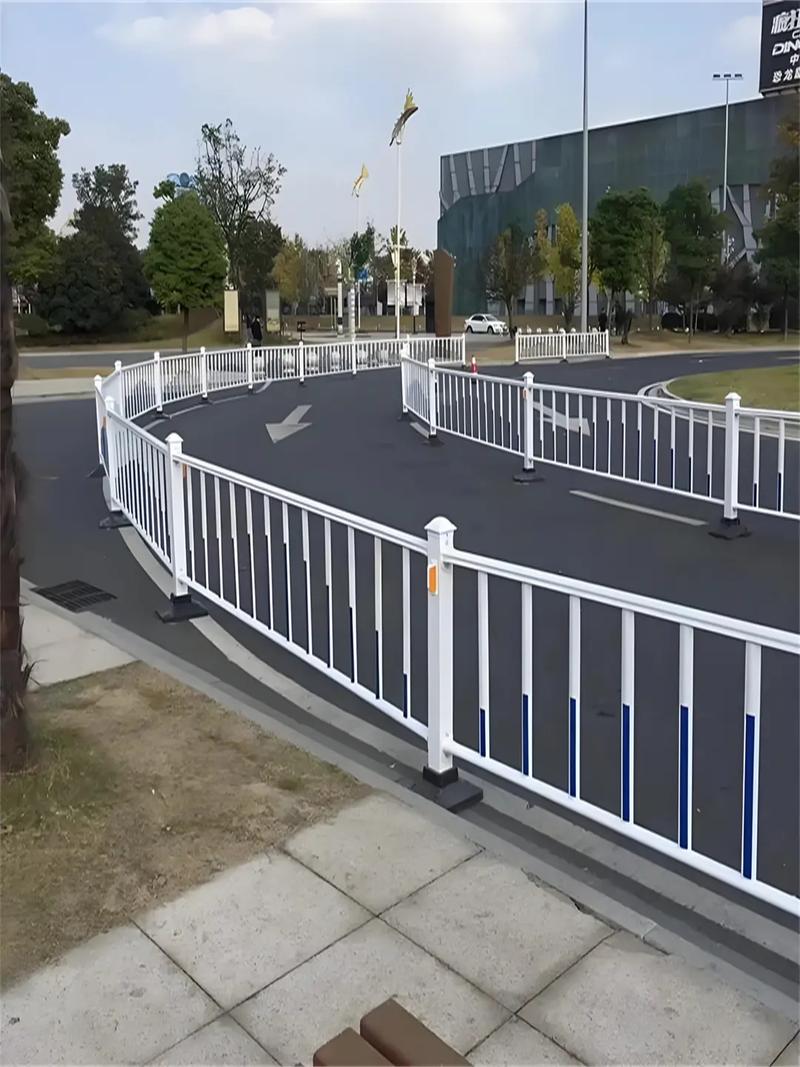

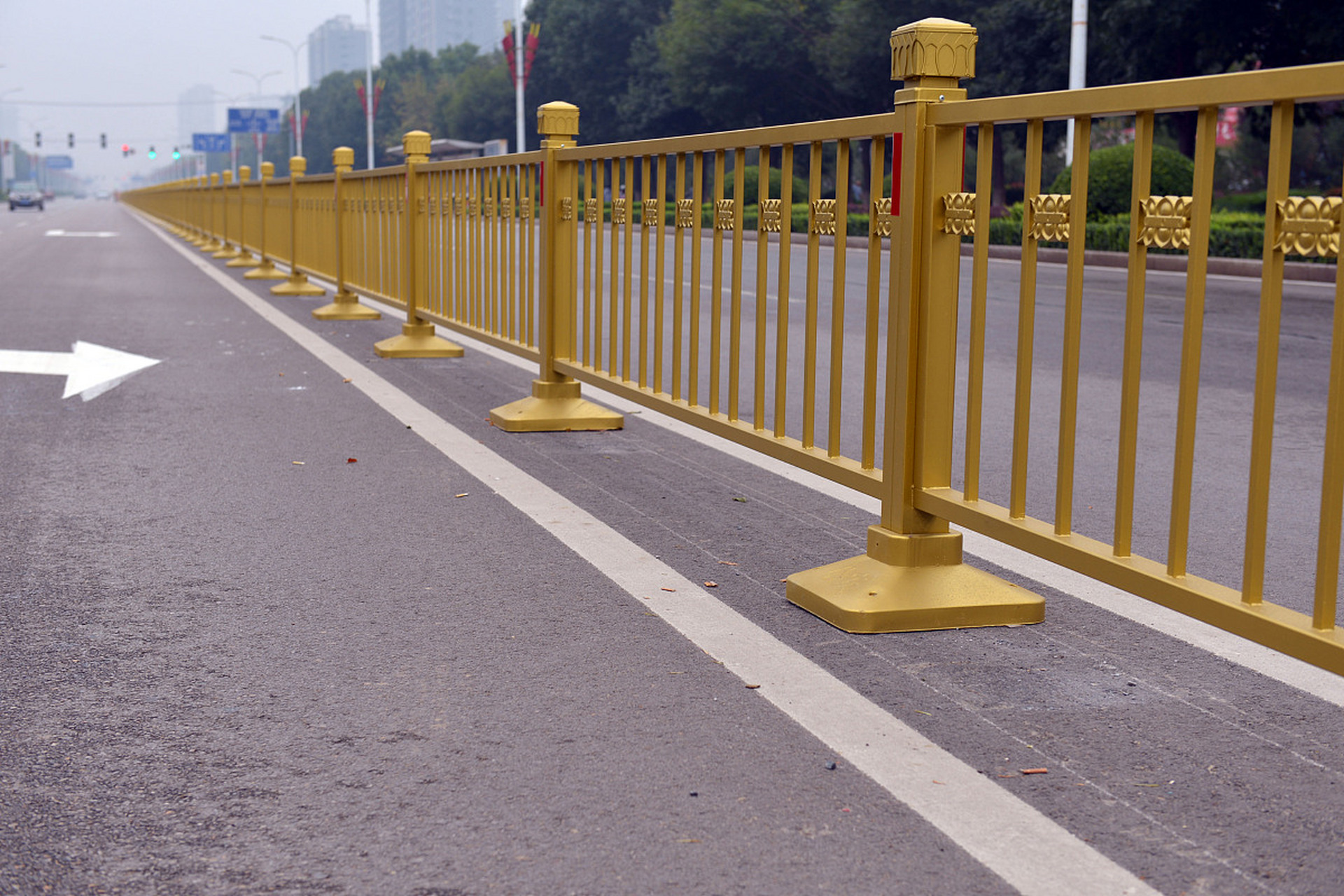

Read the application boundary: these documents concern non-highway industrial pedestrian separation. They are an additional project-reference option within the guardrail range, not a universal specification for every municipal railing. They do not establish highway crashworthiness, fall-protection, handrail or vehicle-impact ratings. Required capacity must be supported by exact configuration evidence and project review.

Configuration and intended function

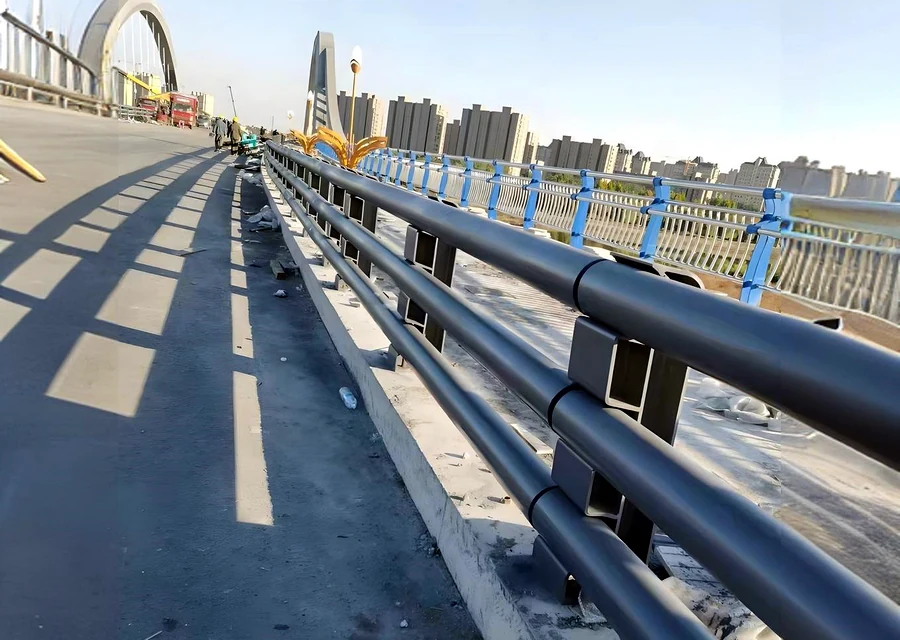

The source diagram illustrates a three-rail arrangement without assigning dimensions or an impact rating. Its intended uses are defining pedestrian routes and equipment exclusion zones, creating a visible maintainable process-area boundary, and accommodating straight runs, corners, returns, gates or removable sections. Choose the actual rail count, profiles, fixing method, corners, access and visibility for the approved project. Engineered impact duty needs project loads and supporting evidence.

Configuration options

Project duty and site inputs

The anchor interface needs design actions, concrete cracked/uncracked condition, edge distance, spacing, embedment, base-plate stiffness and an approved anchor product. Torque alone does not prove anchor capacity. State impact energy, deflection or load capacity only with traceable tests or calculations for the exact configuration, load case and boundary conditions accepted by the responsible designer.

Required submittals

RFQ release checks

• State the function and excluded uses; complete layout, loads, substrate and environmental data.
• Define exact material, finish, welding and fasteners, with engineered anchor selection.
• Label evidence as tested, calculated, supplier-supported or not yet verified.
• Agree inspection, maintenance and damaged-part replacement rules.

Record the approval chain

Installation sequence and stop conditions

Permit and survey → set out → drill and clean → anchor and align → inspect and hand over. Stop for unknown substrate or embedded services, damaged concrete, missing anchor instructions, or a component/drawing mismatch. The guide supplies no universal drill diameter, embedment, torque, impact energy or capacity.

Responsibilities before work starts

Safety and concrete-drilling controls

• Complete the task risk assessment, permit and required lockout/isolation.
• Locate embedded electricity, water, gas, post-tensioning and reinforcement before drilling, with competent interpretation of the scan.
• Control respirable crystalline silica under the applicable law and exposure-control plan, using the task-appropriate dust extraction/wet methods, housekeeping and respiratory program.
• Select eye, hearing, hand, foot and respiratory protection from the assessment and SDS. Barricade the work zone and control sparks, trip hazards, dust and overhead work.
• Avoid dry sweeping or compressed-air cleaning that disperses hazardous dust unless permitted by the applicable regulatory control method. Anchor-hole cleaning must still follow the approved anchor manufacturer’s instructions with appropriate dust controls.

For U.S. concrete work, consult OSHA 29 CFR 1926.1153. This reference does not replace the employer’s site-specific control plan or the anchor manufacturer’s approved installation instructions.

Tool and document readiness

Receipt, survey and hold point HP-1

Check packing IDs, quantities, finish and transport damage; quarantine bent, cracked, misdrilled or unacceptable scratched components and store them protected. Survey run lengths, corners, gates, aisle/equipment clearances, joints, edges, drains, slopes and damaged areas. Confirm full base-plate bearing and approved shim/grout details. Mark centers before the first hole is drilled.

HP-1: accepted before drilling

Drilling and hole inspection

Follow the approved anchor’s drilling diameter, depth and equipment requirements. Drill perpendicular unless the design specifies otherwise. Do not slot or enlarge base-plate holes without written approval. Use the specified hole-cleaning procedure, exclude prohibited water or debris, and record abandoned holes, anomalies and accepted disposition.

Hole-inspection record

Anchors, assembly and geometry

Use only the approved anchor product and embedment. For adhesive anchors, record applicable temperature, hole condition, working time and cure requirements; do not load before cure. Use an in-date calibrated tightening tool and the specified procedure.

Set posts plumb with full base bearing. Install rails, couplers, bolts and caps in the approved orientation; maintain specified gaps, expansion and gate operation. Do not substitute fastener grades, finishes or locking details without approval.

Geometry inspection — use project tolerances

Final inspection before release

Do not conceal, grout over or release a deviation until the responsible party records the condition and approves repair, replacement or use-as-is disposition. Following impact, isolate the affected area and inspect the complete load path, including anchors and substrate for cracking, pullout, rotation or hidden damage. Replace out-of-limit parts; do not heat-straighten or repair without authorization.

Handover record

Maintenance and change control

Set inspection frequency from exposure and traffic risk. Use compatible coating repair and identified replacement parts. Record impacts, corrosion, loose anchors and modifications. Revalidate the installation after layout or equipment changes, and retain as-built revisions, torque/cure records and nonconformance dispositions with customer acceptance.
