Steel Grating
Galvanized Serrated Grating
Galvanized serrated grating combines a toothed walking surface with hot-dip galvanized corrosion protection. It is reviewed for wet, oily or outdoor platforms, stair treads, catwalks and drainage access areas.
RFQ quick details
Product overview
Galvanized Serrated Grating selection for project RFQs
QY Metal Tech supports international project buyers with drawing-based RFQ review, custom fabrication discussion, surface finish selection and export packing notes from Wuxi, Jiangsu, China.
Galvanized Serrated Grating specification path
| Serrated surface | Toothed bearing bars are reviewed for wet, oily, outdoor or traction-sensitive walking areas. |
|---|---|
| Galvanized finish | Hot-dip galvanizing is commonly used for outdoor corrosion protection after fabrication. |
| Bearing bar | Bar size and spacing still decide load capacity together with support span. |
| Walking condition | Slope, oil, water, mud or outdoor exposure should be described before final selection. |
| Fabrication | Cutouts, banding, toe plates and fixing details should be completed before galvanizing. |
| Inspection | Check serration, coating appearance, blocked openings, sharp zinc points and panel marks. |
Standards reference
Standards and finish references can be reviewed by project requirement
- Steel grating can be reviewed according to drawings and standards such as YB/T 4001.1, ANSI/NAAMM MBG 531 or BS 4592 when required.
- Hot-dip galvanizing can be specified according to ISO 1461 or ASTM A123/A123M when a defined zinc coating reference is needed.
- Platform, stair and access projects may refer to ISO 14122 or local safety requirements for walking surfaces and guardrail interfaces.
- Final specification should follow project drawings, load notes, local codes and buyer approval documents.
Specification examples
Common Galvanized Serrated Grating model expressions
| HDG serrated G325/30/100 | Galvanized serrated grating for wet or outdoor walking areas. |
|---|---|
| Serrated 19-W-4 panel | Serrated bearing bar with common welded grating pattern. |
| Outdoor stair tread surface | Galvanized serrated surface reviewed for exterior stair treads. |
| Cutout galvanized panel | Fabrication completed before galvanizing for project openings and marks. |
Use these examples as RFQ shorthand, then confirm final dimensions, load, material, finish and drawings before production.
Applications
Galvanized Serrated Grating applications and project references
These references help buyers connect galvanized serrated grating specifications with real site conditions, fabrication details, packing requirements and installation expectations.

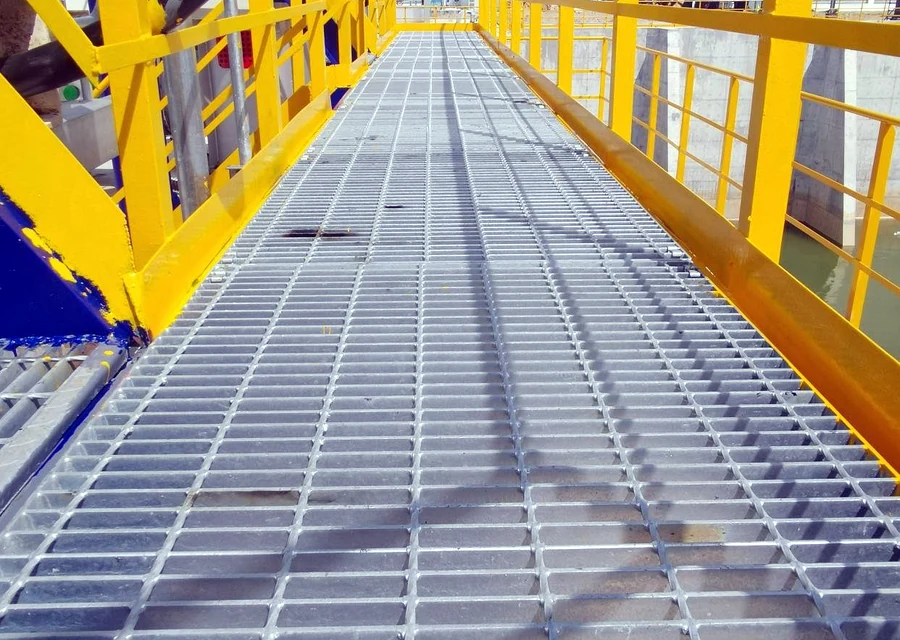

Wet platforms
Galvanized serrated panels for washdown, wastewater and outdoor access floors.
Outdoor stair treads
Serrated grating treads can be reviewed for exterior or wet stair routes.
Pre-shipment review
Serration, galvanizing and panel marks can be checked before packing.
RFQ checklist
Send galvanized serrated grating details for a faster quote
For faster quotation support, include dimensions, material, finish, application, quantity and destination for galvanized serrated grating. Drawings, sketches, replacement photos or old specifications are welcome when the product must match an existing project.
Galvanized Serrated Grating RFQ checklist
- Bearing bar size, spacing and serration requirement
- Support span, load condition and walking environment
- Hot-dip galvanized requirement and fabrication drawings
- Quantity, destination, panel marks and packing notes
FAQ
Galvanized Serrated Grating buyer questions
When should galvanized serrated grating be used?
For wet, oily or outdoor platforms, walkways, stair treads and drainage access areas that need both grip and corrosion protection.
Does serration reduce the load capacity?
Yes. The serrations reduce the effective bearing-bar section, so check the span with serrated-bar data; a deeper bar may be needed.
Is the grating galvanized after fabrication?
Yes. Cutouts, banding and toe plates are completed first, then the panels are hot-dip galvanized so cut edges and welds are coated.
Is galvanized serrated grating suitable for stair treads?
Yes. It is often used for outdoor or wet industrial stair treads, usually with checker plate nosing.
What should be checked before shipment?
Serration, coating appearance, openings blocked by zinc, sharp zinc points, dimensions and panel marks.
Is serrated 19-W-4 grating available?
Yes. Serrated bearing bars can be supplied in the 19-W-4 pattern as well as metric patterns such as G325/30/100.
Related paths
Continue from this product
Need a practical galvanized serrated grating quotation?
Send drawings, specifications, quantity, destination and packing notes. We will review the details before replying with quotation support.
Selection path
Specification, data and project references
1 · Check technical data
2 · See project references
3 · Datasheet and quotation
Order terms
- MOQ: 50 pcs (panels, rolls or pieces)
- Samples available; sample and freight costs paid by the buyer
- Payment: 30% deposit, 70% before shipment
- Lead time: usually 30 days ex-works after deposit and drawing approval
- Quotation in 24–48 hours on working days
- Drawings: PDF, DWG, DXF, JPG, PNG, WebP up to 12 MB
RFQ form
Request Galvanized Serrated Grating quotation
Upload drawings if available. Include product size, material, finish, quantity, destination and application notes for a faster technical response.
Galvanized serrated reference
Galvanized serrated grating details for outdoor anti-slip projects
Galvanized serrated grating combines outdoor corrosion protection with an anti-slip walking surface, so both finish quality and walking condition should be confirmed.
RFQ parameters
| Serrated bearing bars | Confirm serrated surface requirement and bearing direction. |
|---|---|
| Hot-dip galvanized finish | Fabrication details should be finalized before galvanizing. |
| Panel size | Cutouts, notches, banding and toe plates should be shown on drawings. |
| Use condition | Wet, oily, outdoor or drainage conditions should be described. |
| Packing protection | Galvanized serrated panels need marks and handling protection for export. |
Anti-slip outdoor panels
Serrated and galvanized grating for wet industrial access.
Walkway and stairs
Often used for outdoor walkways, platforms and stair treads.
Export bundles
Panel marks and galvanized surface protection support site installation.
Useful internal references
These pages help buyers compare related products, check finish options and prepare a clearer RFQ.
Related links
Related product and RFQ resources
- Steel grating product catalogBrowse the related product family section.
- Steel grating topic entrySteel grating family page for platform grating, stair treads, drain covers, serrated grating, galvanized grating and drawing-based RFQs.
- 19-W-4 steel gratingCompare material, bar spacing and project specification details.
- Carbon steel bar gratingCompare material, bar spacing and project specification details.
- Steel Grating RFQ Checklist for International BuyersRFQ checklist for steel grating buyers covering application, panel or opening size, bearing bar direction, support span, finish, quantity, packing, destination and drawings.
- FRP Grating vs Galvanized Steel Grating for Wet AreasComparison guide for wet or corrosive area grating selection, covering FRP grating and galvanized steel grating by environment, traffic, support, cutouts and quotation details.
- How to Choose Steel Grating for Industrial PlatformsIndustrial platform grating selection guide covering platform use, support span, bearing direction, panel layout, finish, cutouts, fixing clips, drawings and RFQ details.
- Send project RFQ detailsSend drawings, dimensions, finish notes, quantity and destination for review.
Factory verification and order terms
Video factory visits by appointment
Video factory visits can be arranged in advance. Contact our sales team to agree a time, platform and accessible production, inspection or packing areas. Other customers’ information and confidential areas are not shown.
Lead time: usually 30 days ex-works
For regular orders, production usually takes 30 days ex-works, counted from receipt of the deposit and approval of the drawings. Larger or special orders, and stock availability, are confirmed in the written quotation. Production and transport times are stated separately in the quotation or contract.
Written quotation and delivery terms
Trade terms are agreed for each order and logistics arrangement. The written quotation specifies the applicable Incoterms® 2020 rule, named delivery place or port of shipment, and whether freight, insurance and taxes are included. For containers handed to a carrier before vessel loading, FCA is considered rather than automatically using FOB.
Quality concerns and corrective action
Please provide the order number, affected quantity, photos or video, and relevant measurements or inspection records when reporting a quality concern. If responsibility is confirmed to lie with us, a remedy such as repair, additional supply, replacement, refund or price adjustment is agreed under the contract. Costs and the action plan are confirmed in writing; no unconditional return or fixed resolution period is promised.
