FRP Grating Cutouts, Notches and Edge Trim: RFQ Details Buyers Should Confirm
Updated:
Dimension every FRP grating cutout from a named datum and show the finished panel outline, opening shape, edge clearances and support lines on the same drawing. A circular internal opening and a notch breaking through an edge need different fabrication details. Overall panel size alone cannot define either cut or its structural acceptance.

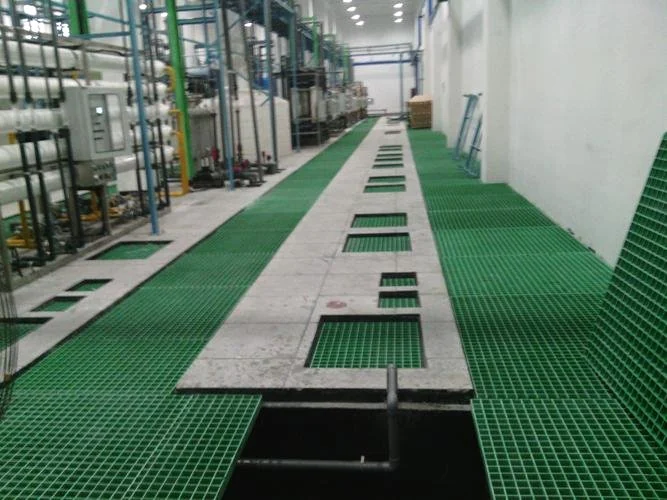

Start with the panel drawing
Cutouts and notches are easiest to review when the buyer sends a marked panel drawing. The drawing should show panel outside dimensions, cutout size, cutout location, edge distance, support direction, and panel marks.
If no formal drawing is ready, send a sketch with dimensions and photos of the installation area. QY can review the RFQ details, but the buyer should confirm final dimensions before production or project approval.
For product context, see molded FRP grating, FRP trench covers, and FRP grating panel size and support span RFQ guide.
Specification details to confirm
| Detail | Why it matters | What buyers should send |
|---|---|---|
| Panel size | Defines cutting basis | Finished panel width, length and panel mark |
| Thickness and mesh size | Affects product review | Thickness, mesh size and drawing-specified panel type |
| Support span | Affects review caution | Clear span, trench opening, frame detail or support ledge |
| Cutout size | Defines fabrication scope | Width, length, diameter, radius or drawing dimension |
| Cutout location | Prevents wrong opening position | Distance from panel edges, centerline or marked coordinates |
| Notches | Affects edge and support details | Column notches, pipe notches, corner notches or site-specific shapes |
| Edge trim | Affects quotation detail | Trimmed edge, sealed edge, framed edge or buyer-specified treatment |
| Removable panels | Affects marks and handling | Lifting holes, access panel marks, split panels or matching covers |
| Surface and color | Affects quotation basis | Concave, gritted, covered top, color and resin wording if specified |
| Packing and destination | Needed for export quotation | Piece count, panel marks, pallet request and destination country or port |
Key terms to clarify
- Cutout: An opening made inside or along a panel, often for pipes, drains, columns, equipment or access.
- Notch: A cut shape removed from an edge or corner of a panel.
- Edge trim: A buyer request for how the cut edge should be treated or finished.
- Panel mark: A label used to match each panel to the drawing or installation position.
Locate the opening before agreeing the cutting scope
Use one stated view and datum. Give the finished panel length and width, hole diameter or cutout dimensions, and the center coordinates or edge offsets that locate it. Mark orientation and panel ID. For an edge notch, identify which edge is interrupted; for a removable piece, identify its separate outline and support.
Hypothetical dimensioning example only: view a 1,000 × 600 mm rectangular panel from above, with the lower-left corner as (0, 0). A circular opening of diameter 100 mm has its center at x = 250 mm, y = 300 mm; its radius is 50 mm. The geometric edge clearances are calculated below. These numbers are not a QY product size, minimum clearance, bearing requirement or approved cutout.
| Clearance in this hypothetical view | Calculation (mm) | Result (mm) |
|---|---|---|
| Left | 250 − 50 | 200 |
| Right | 1,000 − 250 − 50 | 700 |
| Lower | 300 − 50 | 250 |
| Upper | 600 − 300 − 50 | 250 |
Show the actual grating ribs, bearing direction and supports around the opening before approval. The arithmetic locates a shape; it does not prove that the remaining ribs or cut edges can carry the project load. A cut interrupting a support or a load path requires review of the actual panel and support design.
Specify the edge-treatment scope separately: trimmed, sealed, framed or another approved detail. Obtain fabrication and cut-edge instructions for the proposed product rather than treating these words as interchangeable. Agree the drawing revision, panel marks, quantity and packing before the cutting schedule is released.
RFQ checklist
Before sending an FRP grating cutout RFQ, confirm:
- Panel size and panel mark.
- Thickness and mesh size.
- Support span or opening size.
- Cutout dimensions and location.
- Notch shape and edge distance.
- Edge trim or sealing request.
- Surface, color and resin request.
- Quantity by panel mark.
- Drawing, sketch or marked photo.
- Packing, marks and destination.
Related QY pages
- Molded FRP grating for the main FRP grating product page.
- FRP trench covers for trench and removable cover context.
- FRP grating panel size and support span RFQ guide for panel sizing details.
- FRP grating resin system selection for resin and exposure notes.
- FRP anti-slip surface selection for surface request context.
- Contact QY Metal Tech when panel drawings and cutout details are ready.
FAQ
What information is needed for FRP grating cutout RFQs?
Send panel size, thickness, mesh size, support span, cutout dimensions, cutout location, notch details, edge trim request, surface, color or resin request, quantity, packing and drawings.
Can QY quote FRP cutouts from photos only?
QY may start a preliminary review from marked photos, but final quotation is stronger when panel drawings, cutout dimensions, edge distances and panel marks are provided.
Do cutouts affect support review?
They can. Cutouts and notches may change how the panel is supported or handled, so buyers should show support span, opening size, frame detail and cutout position.
Can QY confirm load capacity after cutouts?
QY should not claim load capacity or site suitability after cutouts without confirmed panel design, support condition, project standard and drawings from the buyer.
