Commercial Fence Submittal Checklist: Layout Drawings, Panels, Posts and Gates

A commercial fence submittal should connect the written specification to a marked site plan, fence elevations, panel and post schedules, gate details, corners and changes in grade, foundations or base plates, finish, accessories and approval notes. Send the same document revision to the buyer, installer and supplier. QY Metal Tech can review whether the quotation and fabrication scope match those documents, but it does not replace the project engineer, installer or local approval authority.

Answer summary: A complete commercial fence submittal package includes the fence type, plan and line references, elevations, panel or mesh details, post type and spacing, gates, corners and ends, racked or stepped grade transitions, foundation or base detail, coating and color, clamps and accessories, quantities, packing, project standard and approval responsibility. Mark every exception instead of relying on a generic product name.

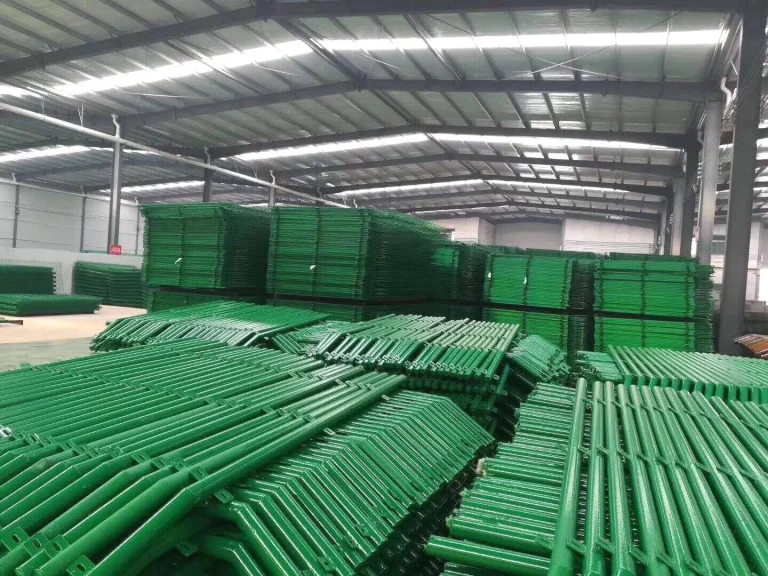

Best-fit use for this checklist

Use it for welded mesh fence, double wire fence, anti-climb panel systems and related commercial or industrial perimeter packages where several documents must agree before quotation or fabrication. It is especially useful when the project has multiple fence heights, gate types, corners, slope transitions, concrete edges, removable panels or security accessories.

This checklist is not a universal engineering submittal template. The project team must define required calculations, wind or security criteria, local codes, sealed drawings, testing and approval steps.

Which document should answer each question?

Document	Main question it should answer	What QY needs to see
Written specification	What system, material, finish and project requirements apply?	Relevant clauses, revision and exceptions
Site plan	Where does each fence type start, stop and change?	Line labels, dimensions, gates, corners and interfaces
Elevation	What height, panel orientation and top/bottom relationship apply?	Typical and special elevations with grade line
Panel schedule	Which panel or mesh construction belongs on each line?	Panel mark, width, height, opening, wire and finish
Post schedule	Which posts, spacing and connections apply?	Line, corner, end and gate post marks
Gate schedule	What opening, leaf, frame, hardware and access-control interface apply?	Gate ID, clear opening, swing/slide direction and hardware scope
Foundation/base detail	How is each post supported?	Embedded, concrete-set or base-plated detail and responsibility
Accessory detail	What clamps, brackets, rails, toppings or panels complete the system?	Item marks, quantities and attachment relationship
Approval register	Who reviews each document and what status controls release?	Required submittal items, approver and latest status

Strong competitor resource libraries separate brochures, cut sheets, line drawings, physical-property charts and installation details. QY applies that lesson by asking buyers to identify the function of each supplied document rather than treating a brochure as a project drawing.

Fence submittal specification fields

Field	Buyer decision	Common mismatch to prevent
Fence family	Welded mesh, double wire, anti-climb or another named system	Product wording changes between plan and schedule
Panel or mesh	Width, height, opening, wire diameter and orientation	Panel mark lacks opening or wire information
Posts	Section, length, type and line/corner/end/gate role	One post type is assumed for every location
Post spacing	Center-to-center spacing and special bays	Spacing conflicts with panel width or gate opening
Gates	Clear opening, leaf count, frame, infill and hardware	Nominal gate width is confused with clear opening
Grade change	Racked, stepped or project-defined transition	Elevation does not show bottom gap or panel change
Support	Embedded, concrete-set or base-plated arrangement	Foundation responsibility is not assigned
Finish	Galvanized, coated, color and project wording	Finish differs among panel, post and accessories
Accessories	Clamps, brackets, rails, toppings, base plates and fasteners	Small components are omitted from the quantity schedule
Interfaces	Wall, curb, building, guardrail, access control or utility	Fence endpoint and connection are not detailed
Quantity and packing	Lineal length, panel/post count, gate count, marks and delivery sequence	Total length is supplied without itemized quantities
Project control	Standard, submittal requirement and approval responsibility	Supplier quotation is mistaken for project approval

For product context, review QY's welded mesh fence and double wire fence pages. For narrow-opening perimeter panels, use the anti-climb welded mesh fence RFQ guide.

Plan and layout drawing checklist

Before issuing the RFQ or submittal, confirm that the plan shows:

• North arrow, scale, units and drawing revision.
• Fence line IDs with start and end points.
• Dimensions or stationing for every line.
• Corners, returns, offsets and terminal conditions.
• Gate IDs, clear openings and operating direction.
• Changes in fence type, height, finish or security topping.
• Grade breaks and the required racked, stepped or special panel method.
• Building, wall, curb, guardrail and access-control interfaces.
• Foundation or base-plate detail references.
• Removable panels, maintenance openings and exclusion zones.
• Item marks that match the panel, post, gate and accessory schedules.

Do not infer the installation method from a product photo. Driven, concrete-set, embedded and base-plated posts require different site, soil, foundation and engineering information.

Plain-language submittal terms

• Submittal: The project-controlled package sent for review; it may include supplier data, drawings, schedules and stated exceptions.
• Cut sheet: A product-data document. It does not by itself show the project's fence line, quantities or interfaces.
• Shop or layout drawing: A project-specific drawing that coordinates item marks, dimensions and interfaces for review.
• Exception: A clear difference between the supplier's proposed scope and the project document; it should be written, not hidden in a product code.

QY review and approval boundary

QY can compare the RFQ against the proposed panel, post, gate, finish, accessory, fabrication and packing scope. QY can also flag missing dimensions, conflicting item marks and unassigned components before quotation.

QY should not claim that a fence meets a local security class, wind requirement, anti-climb rule, access-control requirement or installation standard unless the buyer supplies the governing requirement and the responsible project party approves the result. Product similarity is not system approval.

Use the fence coating and color guide for finish coordination and the fence clips, clamps and base plates guide for accessory quantities.

RFQ and submittal package to send

• Current written specification and drawing index.
• Marked plan, typical elevations and every special detail.
• Panel, post, gate and accessory schedules.
• Finish and color schedule.
• Foundation, base plate and interface details.
• Project standards and required submittal list.
• Written exceptions and unanswered questions.
• Itemized quantity, spare quantity, packing marks and delivery sequence.
• Destination and contact for technical clarification.

Send the coordinated package through QY Metal Tech's contact page. Keep one revision number across the RFQ, drawings and schedules so quotation changes can be traced.

Frequently asked questions

Is a fence product cut sheet enough for a commercial submittal?

Usually not. A cut sheet identifies product data, while the project package must also coordinate fence lines, heights, panels, posts, gates, grade changes, foundations, finishes, accessories and approval requirements.

Should gate details be included in the fence layout drawing?

Yes. Mark each gate ID, clear opening, leaf count, operating direction, frame and infill, posts, hardware scope, access-control interface and foundation reference.

Can QY approve driven or concrete-set fence posts for the site?

No. QY can quote the specified post and support scope, but the project team must provide soil, foundation, load, installation and approval requirements.

How should submittal exceptions be recorded?

List each exception against the relevant specification or drawing reference, describe the proposed scope and keep it visible in the quotation and revision log until the responsible party resolves it.
