Ball Joint Railing Layout Notes for Industrial Handrail RFQs
Ball joint railing RFQs are easier to review when the buyer sends a layout drawing, rail height, post spacing, corner and stair details, kick plate requirement, finish, quantity, packing request, and destination. A short inquiry such as "handrail price" usually needs follow-up before a quotation can be prepared.
Answer summary: A useful ball joint railing RFQ should define the handrail layout, post positions, rail height, corner or bend details, stair or platform connection, kick plate requirement, finish, quantity, and destination before pricing.
Start with the layout drawing
Industrial handrail systems are layout-based products. The same railing length can be quoted differently when post spacing, corners, stairs, openings, kick plates, or installation conditions change.
Buyers should send a plan drawing, platform drawing, stair drawing, or marked sketch. If a formal drawing is not available, site photos with dimensions can help QY identify the missing layout details before quotation.
For product context, see ball joint railings and the related handrail layout notes.
Confirm rail height, post spacing and route changes
Useful RFQ details include rail height, post type, post spacing, rail tube size if specified, corner direction, stair angle, gate or removable section, and connection to platforms or walkways.

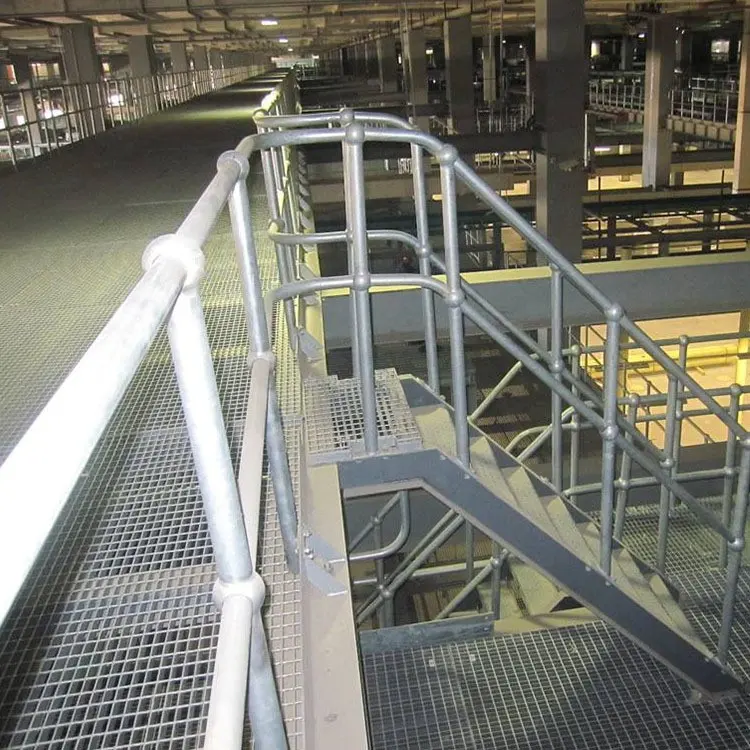

If the handrail runs around a platform, the buyer should mark each side length and any opening. If the handrail follows stairs, send stair slope, step layout, landing details, and whether side plates or brackets are included in the project scope.
Ball joint railing RFQ table
| RFQ detail | Why it matters | What buyers should send |
|---|---|---|
| Layout route | Defines total railing length and post positions | Plan drawing, marked sketch or site photo |
| Rail height | Affects post and rail review | Required height or project drawing note |
| Post spacing | Affects quantity and layout | Spacing requirement or drawing reference |
| Corners and bends | Affects fittings and fabrication review | Corner locations, bend direction and dimensions |
| Stairs and landings | Affects slope and connection details | Stair drawing, angle, landing and side notes |
| Kick plate | Affects material list and finish | Kick plate requirement, height and location |
| Finish | Affects fabrication, inspection and packing | Galvanized, painted, coated or project-specified finish |
| Quantity and destination | Needed for quotation and export review | Total length, sets, destination country or port |
Do not leave accessories out
Ball joint railing RFQs may include posts, rails, balls, elbows, base plates, kick plates, bolts, caps, clamps, and other accessories. Buyers should state whether the quotation should include accessories and installation hardware.
If a project standard controls rail height, post spacing, or safety requirements, send the standard or drawing note. QY can review the quotation basis from the provided documents, but should not claim local code compliance without the buyer's requirement.
RFQ checklist
Before sending a ball joint railing RFQ, prepare:
- Project use, such as platform, walkway, stair, maintenance access, or industrial area.
- Layout drawing, sketch, or marked site photo.
- Total length by section if known.
- Rail height and post spacing.
- Post type, rail tube size, or drawing reference if specified.
- Corners, bends, stairs, landings, gates, or removable sections.
- Kick plate or toe board requirement.
- Base plate, fixing, bolts, caps, clamps, or accessories.
- Finish or coating requirement.
- Quantity and destination.
- Packing, marks, and loading request.
Related QY pages
- Ball joint railings for industrial handrail product review.
- Handrail layout notes for related layout confirmation details.
- Highway guardrails for road safety barrier product context.
- QY Metal Tech services for drawing review, fabrication, packing and export RFQ support.
- Contact QY Metal Tech when handrail drawings and section lengths are ready.
FAQ
What information is needed for a ball joint railing RFQ?
A ball joint railing RFQ should include layout drawing, rail height, post spacing, section length, corners, stairs, kick plate requirement, finish, accessories, quantity, packing request, and destination.
Can QY quote handrails without a formal drawing?
QY may be able to start a preliminary review from sketches, photos, dimensions, finish request, quantity, and destination. A final quotation may still require a clearer layout drawing.
Should kick plates and accessories be listed separately?
Yes. Kick plates, base plates, bolts, caps, elbows, clamps, and other accessories can affect quotation and packing, so they should be included in the RFQ list when required.
Can QY confirm local handrail code compliance?
QY should not claim local code compliance without the buyer's project standard, drawing, or local requirement. Buyers should send any applicable standard for review.
